Clicker 2 for PIC32MZ

Description

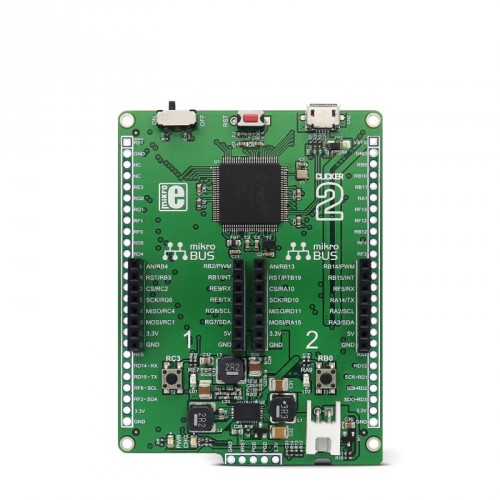

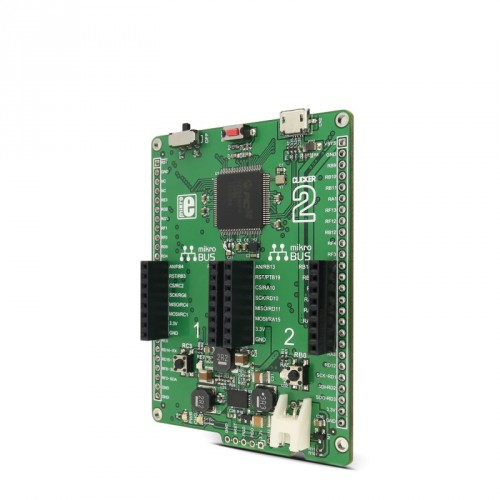

Clicker 2 for PIC32MZ is a compact PIC32 development kit with two mikroBUS™ sockets for click board connectivity. It carries the PIC32MZ 32-bit microcontroller (1 MB Live-Update Flash and 512 KB SRAM) with FPU from Microchip. With a built-in USB-HID bootloader the Clicker 2 for PIC32MZ it easy to program.

Everything you need to get started

The board features everything you need to get started: a PIC32MZ microcontroller, micro USB connector, two mikroBUS™ sockets, two LEDs and additional buttons, reset button and headers for interfacing with external electronics.

PIC32MZ 32-bit microcontroller

This 32-bit (1 MB Live-Update Flash and 512 KB SRAM) microcontroller with FPU is rich with on-chip peripherals.

The PIC32MZ EF family features high core performance up to 200 MHz, an integrated Floating-Point Unit (FPU), a wide selection of peripherals and excellent connectivity options including Controller Area Network (CAN).

Hundreds of possibilities with click boards™

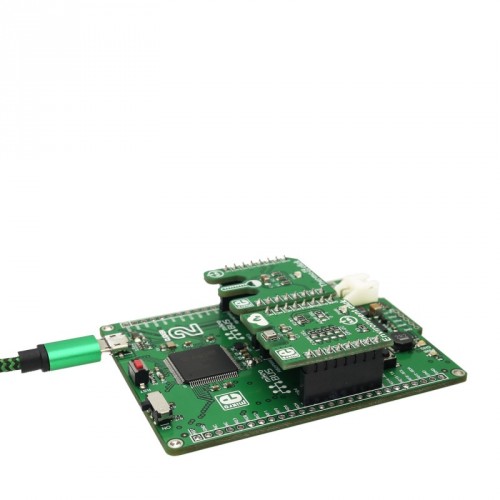

Take advantage of the constantly expanding range of hundreds of click boards™ - the two onboard mikroBUS™ sockets allows you to add new functionality to your project. Each click board™ comes with a set of working example code.

Programming

To make your prototyping experience as convenient as possible, Clicker 2 for PIC32MZ is preprogrammed with a USB-HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. The on-board mikroProg connector enables programming through external programmer/debugger.

You can supply power to the board with a micro USB cable provided in the package. Onboard voltage regulators provide the appropriate voltage levels to each component on the board.

Specifications

Downloads

 PIC32MZ datasheet

 Cilcker 2 for PIC32MZ Bootloader

 Clicker 2 for PIC32MZ user manual
