mikromedia Plus for STM32
Product Code: MIKROE-1397
mikromedia Plus for STM32

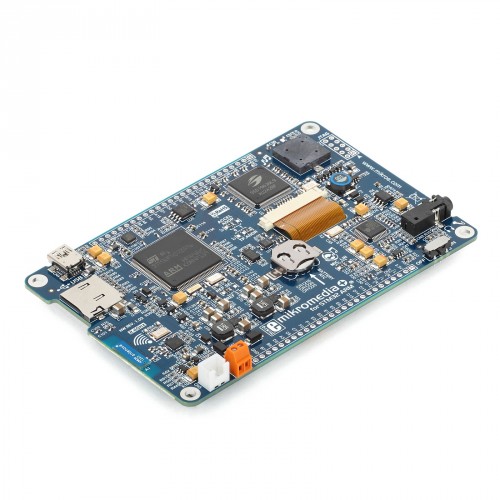

Start building your applications with intuitive, user-friendly menus and dashboards using powerful STM32 ARM Cortex-M4 microcontroller. This board provides a compact high-quality multimedia development platform for STM32F407ZGT6 device.
.jpg)
Power of 168 MHz
Once you experience 168 MHz on a microcontroller, you won’t be turning back. Mighty STM32F407ZGT6 with FPU has a breathtaking performance.

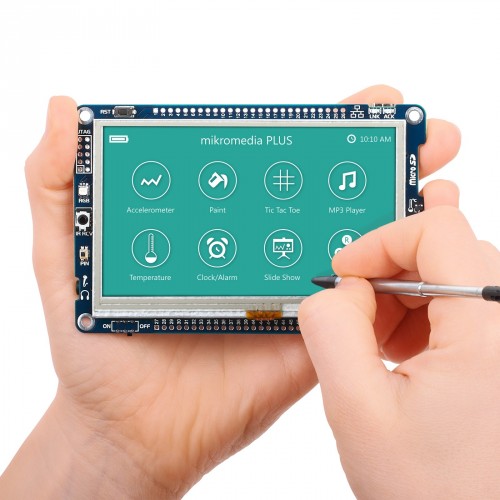

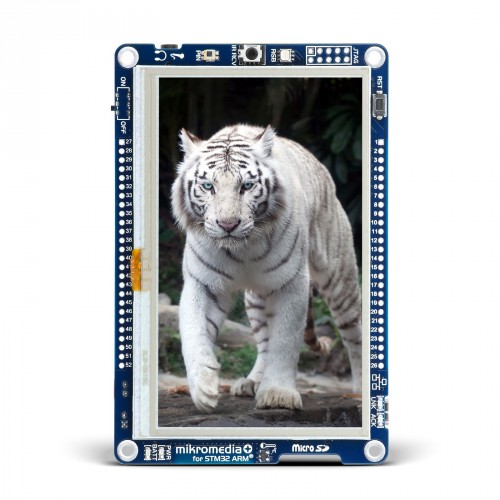

Large 4.3" Touch Screen
It's time to see the big picture. New 4.3” touch screen driven by SSD1963 graphics controller delivers crystal sharp image in 480x272px resolution.
2.4GHz RF transceiver
Nordic’s nRF24L01+ transceiver with active chip antenna will make you forget about wires. Drive it with simple SPI commands. It's that easy.
A whole lot of modules
Board has it all: USB connector, temp. sensor, RTC battery, PIN photosensor, IR receiver, accelerometer, battery charger, MP3 codec, buzzer, etc.
Programming
On-board microcontroller is preprogrammed with fast USB HID bootloader, so it’s ready to work right out of the box. You don’t have to spend a dollar more on programmers. If you need a debugger use mikroProg for STM32.
Compilers
mikromedia Plus for STM32 is fully supported by mikroC, mikrobasic and mikroPascal compilers for ARM. Compilers come with dozens of examples that demostrate every feature of the board.
GUI design with Visual TFT
Easily create fantastic colourful graphical user interfaces (GUI) for mikromedia in Visual TFT software. Even total beginners will be able to create amazing applications.
Package Contains
- Damage resistant protective box
- mikromedia PLUS for STM32 ARM board in an antistatic bag
- USB cable, microSD 2GB and 3 headers (2x5 and a pair of 1x26)
- Documentation
Special discount on the Shield
Use this amazing opportunity and get the Shield for the mikromedia Plus for STM32 50% OFF. Expand the functionality of your mikromedia with four mikroBUS™ sockets.
We have more than 300 click boards™ in the shop, from wireless transceivers and sensors to motor control click boards™ and displays.
Note: you need to add both the mikromedia Plus and the Shield to the cart in order for the discount to apply.
Specification
| Applications | Best used as a development board but also as a final product. Use cases include industrial, medical, automotive and other dashboards and equipment. |
| Displays | TFT full-color |
| Display size | 4.3" |
| Resolution | 480x272px |
| Graphic controller | SSD1963 |
| Touch Screen | Resistive |
| Architecture | ARM (32-bit) |
| MCU | STM32F407ZGT6 |
| MCU speed | 210 DMIPS, 168 MHz, 1.25 DMIPS/MHz |
| MCU Memory | 1 MB of Flash, 192 KB of SRAM |
| Programming | Preprogrammed with fast USB HID bootloader. Also features mikroProg for STM32 connector |
| Key Benefits | On-board microcontroller is preprogrammed with fast USB HID bootloader |
| Wireless connectivity | Nordic’s nRF24L01+ transceiver , IR receiver |
| Storage | 8 Mbit of Serial Flash, microSD card slot |
| Sound and Audio | VS1053 MPEG audio decoder, Piezo Buzzer |
| Peripherals include | USB OTG connector, Temp. sensor, RTC battery, PIN photosensor, Accelerometer, Battery Charger |
| Expandability | Two 1x26 headers, mikromedia standard pinout |
| Integration | Mounting holes |
| Input Voltage | 5V (Via USB) or 5-12V DC (via external adapter) |
Downloads
mikroBootloader for mikromedia Plus
mikromedia PLUS for STM32 User Manual
mikromedia PLUS for STM32 Schematic
