mikromedia Plus for PIC32MX7
Product Code: MIKROE-1399
mikromedia Plus for PIC32MX7

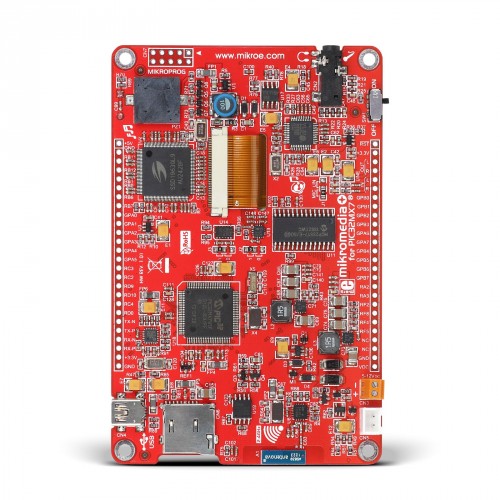

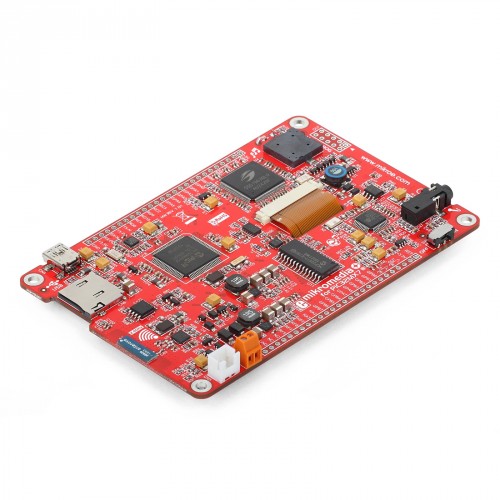

Start building your applications with intuitive, user-friendly menus and dashboards using a powerful MIPS32-core PIC32MX7 microcontroller. This board provides a compact high-quality multimedia development platform for PIC32MX795F512L device.
Fast and furious
Mighty PIC32MX795F512L microcontroller with 512KB of Flash, 128KB of RAM and loads of on-chip modules is ready to handle your ideas.

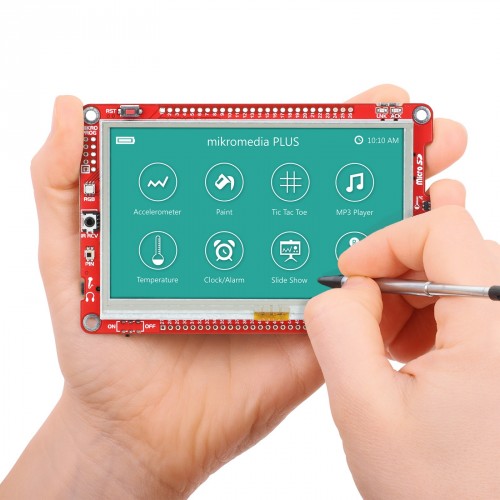

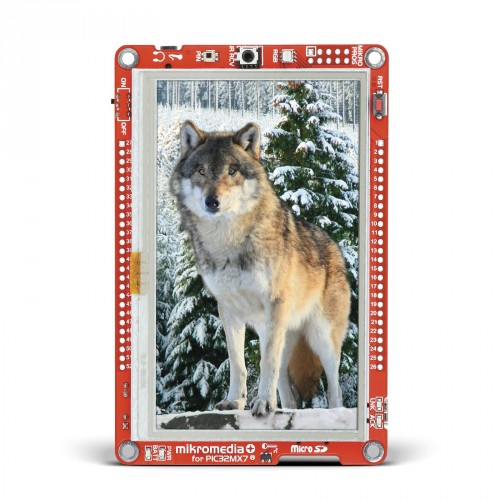

Large 4.3" Touch Screen
It’s time to see the big picture. New 4.3” touch screen driven by SSD1963 graphics controller delivers crystal sharp image in 480x272px resolution.
2.4GHz RF transceiver
Nordic’s nRF240L01+ transceiver with active chip antenna will make you forget about wires. Drive it with simple SPI commands. It that easy.
A whole lot of modules
Board has it all: USB connector, temperature sensor, PIN photosensor, IR receiver, accelerometer, battery charger, MP3 codec, buzzer, etc.
Programming
The onboard microcontroller is preprogrammed with fast USB HID bootloader, so it’s ready to work right out of the box. You don’t have to spend a dollar more on programmers. If you need a powerful debugger use mikroProg for PIC, dsPIC and PIC32.
Compilers
mikromedia Plus for PIC32MX7 is fully supported by mikroC, mikroBasic and mikroPascal compilers for PIC32. Compilers come with dozens of examples that demonstrate every feature of the board.
GUI design with Visual TFT
Easily create fantastic colorful graphical user interfaces (GUI) for mikromedia in Visual TFT software. Even total beginners will be able to create amazing applications.
Package Contains
- Damage resistant protective box
- mikromedia PLUS for PIC32MX7 board in an antistatic bag
- USB cable, microSD 2GB and 3 headers (2x5 and a pair of 1x26)
- Documentation
Special discount on the Shield
Use this amazing opportunity and get the Shield for the mikromedia Plus for PIC32MX7 50% OFF. Expand the functionality of your mikromedia with four mikroBUS™ sockets.
We have more than 300 click boards™ in the shop, from wireless transceivers and sensors to motor control click boards™ and displays.
Note: you need to add both the mikromedia Plus and the Shield to the cart in order for the discount to apply.
Specification
| Applications | Best used as a development board but also as a final product. Use cases include industrial, medical, automotive and other dashboards and equipment. |
| Displays | TFT full-color |
| Display size | 4.3" |
| Resolution | 480x272px |
| Graphic controller | SSD1963 |
| Touch Screen | Resistive |
| Architecture | PIC32 (32-bit) |
| MCU | PIC32MX795F512L |
| MCU speed | 105DMIPS, 80 MHz, 1.31 DMIPS/MHz |
| MCU Memory | 512KB of Flash, 128KB RAM |
| Programming | Preprogrammed with fast USB HID bootloader. Also features mikroProg for PIC32 connector |
| Key Benefits | On-board microcontroller is preprogrammed with fast USB HID bootloader |
| Wireless connectivity | Nordic’s nRF240L01+ transceive, IR receiver |
| Storage | 8 Mbit of Serial Flash, microSD card slot |
| Sound and Audio | VS1053 MPEG audio decoder, Piezo Buzzer |
| Peripherals include | USB OTG connector, Temp. sensor, RTC battery, PIN photosensor, Accelerometer, Battery Charger |
| Expandability | Two 1x26 headers, mikromedia standard pinout |
| Integration | Mounting holes |
| Input Voltage | 5V (Via USB) or 5-12V DC (via external adapter) |
Downloads
mikromedia Plus for PIC32MX7 User Manual
mikromedia Plus for PIC32MX7 Schematic
mikromedia Plus for PIC32MX7 Examples
