Mic click

Product Code: MIKROE-2563

Mic click
Mic click
Mic click
Mic click

₹949.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

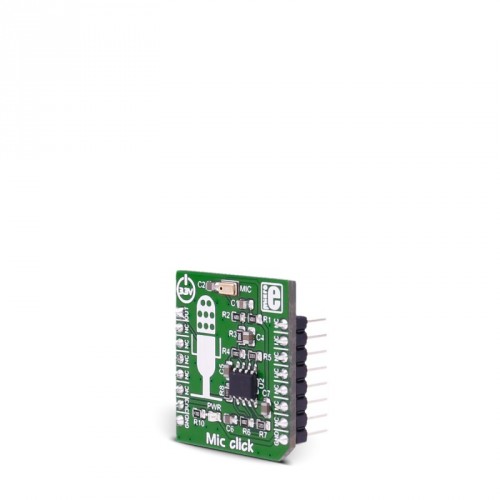

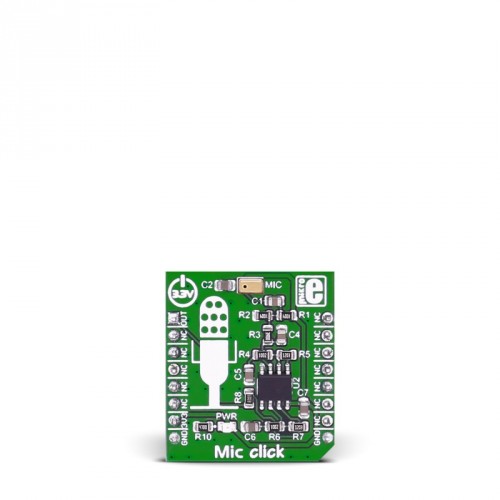

Mic click carries the SPQ0410HR5H-B surface mount silicon microphone with maximum RF protection. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over the AN pin on the mikroBUS™ line.

How it works

Mic clicks contains a silicon microphone, which outputs the signal to the analog pin (AN) on the mikroBUS™ line via the op amp.

SPQ0410HR5H-B features

The SPQ0410HR5H-B is a miniature, high-performance, low power, top port silicon microphone.

Using the SiSonic™ MEMS technology, the SPQ0410HR5H-B consists of an acoustic sensor, a low noise input buffer, and an output amplifier.

MaxRF protection prevents RF noise in traces from getting into the mic output.

TEST CONDITIONS: 23 ± 2C °, 55 ± 20 % R.H., VDD(min)<VDD(max), no load, unless otherwise indicated

Parameter Symbol Conditions Min Typ Max Units
Supply Voltage1 VDD   1.5   3.6 V
Supply Current1,2 IDD     120 160 µA
Sensitivity1 S 94 dB SPL @ 1kHz -45 -42 -39 dBV/Pa
Signal to Noise Ratio SNR 94 dB SPL @ 1kHz, A-weighted   59   dB(A)
Total Harmonic Distortion THD 94 dB SPL @ 1kHz, S=Typ, Rload>3kΩ     1 %
Acoustic Overload Point AOP 10% THD @ 1 kHz, S=Typ, VDD=3.6V, Rload>3kΩ 115     dB SPL
DC Output   VDD=1.5V   0.73   V
Output impedance ZOUT @ 1 kHz     400
Directivity     Omnidirectional
Polarity   Increasing sound pressure Decreasing output voltage

1100% tested.
2Maximum specifications are measured at maximum VDD. Typical specifications are measured at VDD=1.8V.

Omnidirectional microphones

SPQ0410HR5H-B is an omnidirectional microphone. As the name implies an omnidirectional microphone can hear equally in all directions. So whichever way you hold it, up or down, it will work the same.

Speciifications

Type Microphone
Applications Processing audio with an MCU, mobile phones, smartphones, laptop computers, sensors, digital still cameras, portable music recorders, etc.
MCU SPQ0410HR5H-B
Key Features Omnidirectional, MaxRF protection, Sensitivity: -42 dBV/Pa
Interface Analog
Input Voltage 3.3V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)

Pinout diagram

This table shows how the pinout on Mic click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes Pin Mikrobus logo.png Pin Notes
Analog output pin OUT 1 AN PWM 16 NC
  NC 2 RST INT 15 NC
  NC 3 CS TX 14 NC
  NC 4 SCK RX 13 NC
  NC 5 MISO SCL 12 NC
  NC 6 MOSI SDA 11 NC
Power supply +3.3V 7 3.3V 5V 10 NC
Ground GND 8 GND GND 9 GND Ground

Programming

Code examples for Mic click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

The following code snippet measures volume every 10 ms, and outputs measured data to a tft display.

01 void main()
02 {
03    uint16_t measuredValue;
04
05    systemInit ();
06    TFT_Set_Pen( CL_RED, 1 );
07    while (1)
08    {
09        measuredValue = ADC1_Read(12);
10        y = measuredValue/30 + 71;
11        if (x !=0)
12            TFT_Line (x, y, oldx, oldy);
13
14        oldx = x;
15        oldy = y;
16
17        Delay_ms (10);
18        x++;
19        if (x==320)
20        {
21            x=0;
22            TFT_Set_Pen( CL_WHITE, 1 );
23            TFT_Rectangle (0,71,320,219);
24            TFT_Set_Pen( CL_RED, 1 );
25        }
26    }
27 }

Downloads

 mikroBUS™ Standard specification

 LibStock: Mic click library

 SPQ0410HR5H-B datasheet

 Mic click schematic
