Magician Chassis - 2WD

DESCRIPTION

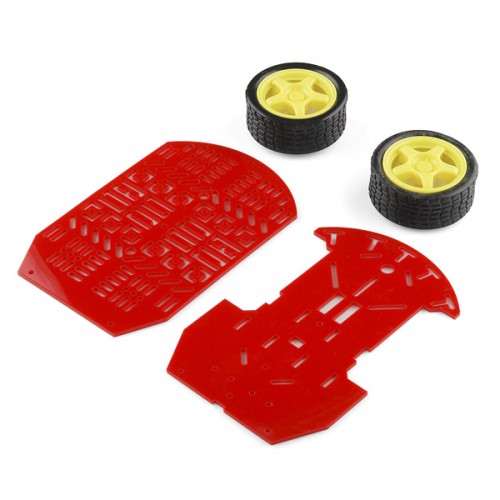

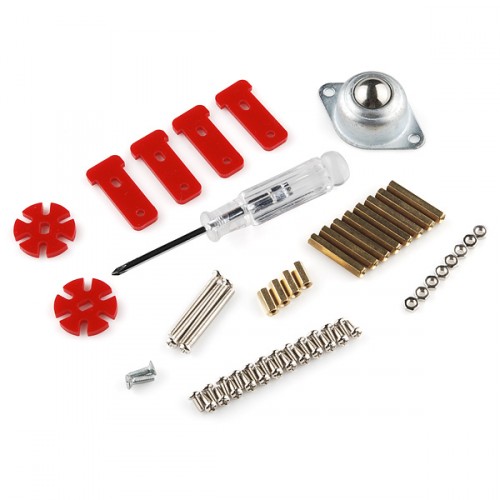

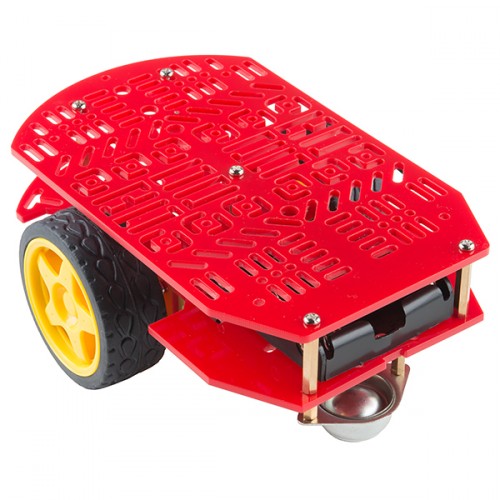

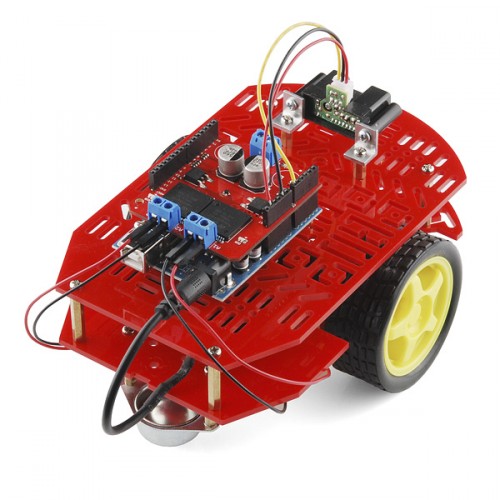

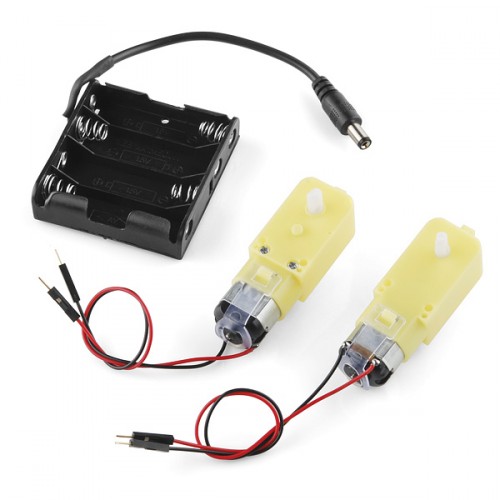

The Magician Chassis is our latest robot platform from Dagu. It features two gearmotors with 65mm wheels and a rear caster. The chassis plates are cut from acrylic with a wide variety of mounting holes for sensors, controllers, power, etc. Simply bolt the two pre-cut platforms together, attach the motors and caster and add your favorite robotics controller. This kit includes all of the parts needed to assemble the chassis as well as a 4xAA battery holder with barrel jack termination.

This new version comes with new hardware that matches what the instructions actually say is in the kit. No more confusing mix-ups or inconsistencies!

Note: The chassis requires assembly but has detailed instructions.

Dimensions: 110 x 174mm

Features:

• Max Motor Voltage: 6VDC
• No Load Speed: 90±10rpm
• No Load Current:190mA(max.250mA)
• Torque: 800gf.cm
• Stall Current: ~1A
• 65mm Diameter Wheels (30mm Wide)
• Plastic Rims with Solid Rubber Tires
• Dual Output Shafts
• Wheel Encoder Boards Included

Documents:

• Datasheet (Motors)
• Assembly Instructions
• Product Video
