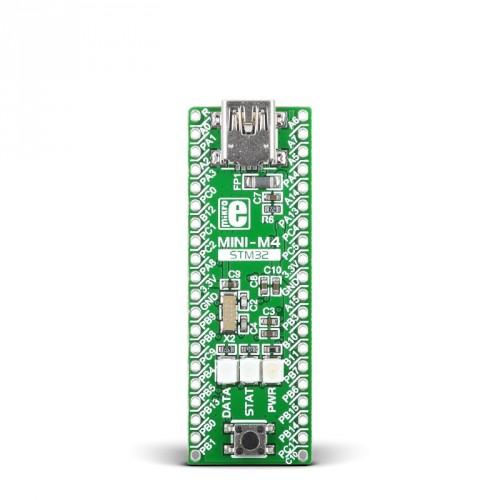

MINI-M4 for STM32 is a small ARM® Cortex™-M4 development board containing STM32F415RG microcontroller. It is pin compatible with PIC16F887 and PIC18(L)F45K20 microcontrontrollers and it perfectly fits into standard DIP40 socket. Board is equipped with 16MHz SMD crystal oscillator, and 32.768KHz crystal which can be used for internal RTCC module. It has reset button and three signal LEDs. It operates on 3.3V power supply. On-board voltage regulator allows the board to be powered directly from USB cable.
Programming. Board comes preprogrammed with fast USB HID bootloader, so no external programmers are needed for development.
Architecture | ARM (32-bit) |
MCU | STM32F415RG |
MCU speed | 168MHz |
MCU Memory | 1MB of Flash, 192+4KB of RAM |
On-board modules | 3 x LEDs, 1 x Reset Button, USB 2.0 OTG connector |
Programming | Comes preprogrammed with USB HID bootloader |
Key Features | Supports CAN communication |
Integration | Pin compatible with PIC16F887 and PIC18(L)F45K20 in DIP40 packaging |
Input Voltage | 5V (via USB) or 3.3V (via external source) |
