MINI-M4 for Kinetis

Product Code: MIKROE-2445

MINI-M4 for Kinetis
MINI-M4 for Kinetis
MINI-M4 for Kinetis
MINI-M4 for Kinetis

₹3,049.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

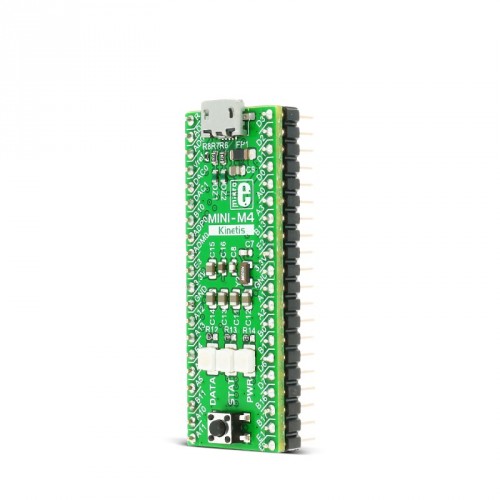

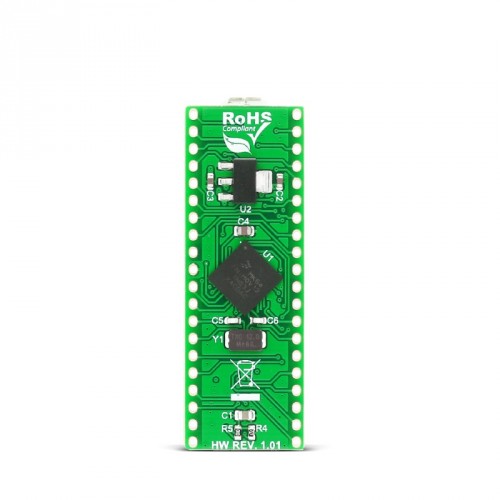

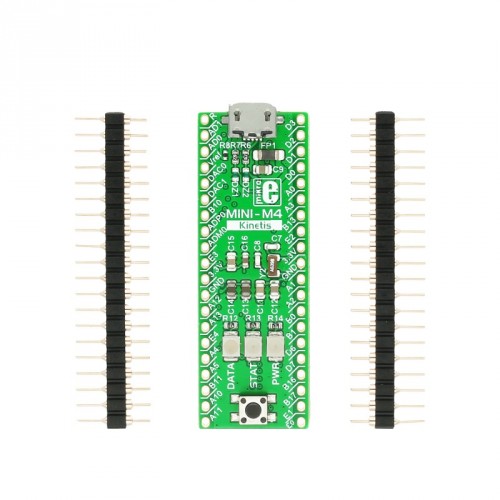

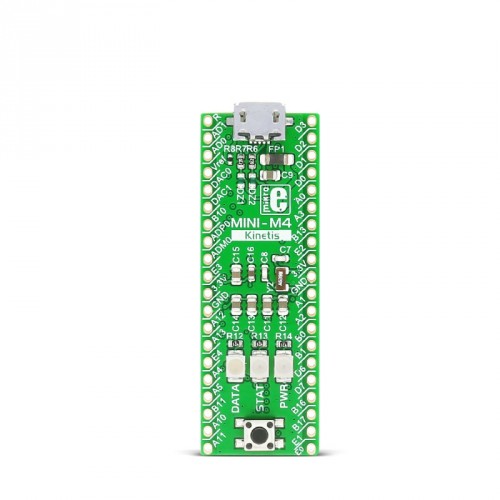

MINI-M4 for Kinetis is an ARM® Cortex™-M4 development board containing MK64FN1M0VDC12 microcontroller. This compact and powerful development board is designed to work as a standalone device or as an MCU card in DIP40 socket.

MINI-M4 for Kinetis operates on a 3.3V power supply. The onboard voltage regulator allows the board to be powered directly from USB cable.

The board is equipped with a 12MHz crystal oscillator and 32.768kHz crystal which can be used for internal RTCC module.

USB HID bootloader

MINI-M4 for STM32 is pre-programmed with USB HID bootloader so it is not necessary to have an external programmer.

External programmers

In case you need an external programmer, like the mikroProg™, attach MINI-M4 for Kinetis via the following pins on the board: PTA0 (TCK/SWC), PTA3 (TMS/SWD), PTA2 (TDO) and PTA1 (TDI).

Key features

  • MK64FN1M0VDC12 MCU
    • 1MB of Flash, 256KB of SRAM
    • ARM® Cortex®-M4 core
  • USB connector
  • 3.3V power supply

Specification

Type ARM
MCU MK64FN1M0VDC12
MCU speed 120 MHz
MCU Memory 1MB of Flash, 256KB of SRAM
On-board modules 3 x LEDs, 1 x Reset Button, USB connector
Programming Comes preprogrammed with USB HID bootloader
Input Voltage 5V (via USB) or 3.3V (via external source)

Downloads

 mikroBootloader for MINI-M4 for Kinetis

 MINI-M4 for Kinetis schematic

 MINI-M4 for Kinetis manual
