MINI-M0 for STM32
Product Code: MIKROE-1518
Description

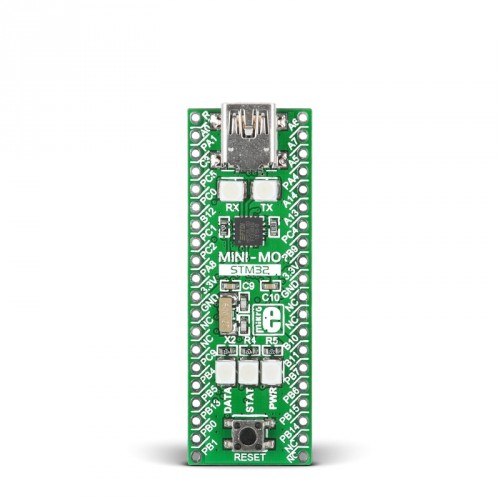

MINI-M0 for STM32 is a small ARM® Cortex™-M0 development board containing STM32F051R8 microcontroller. It perfectly fits into standard DIP40 socket. Board is equipped with 16MHz SMD crystal oscillator, and 32.768KHz crystal which can be used for internal RTCC module. It has reset button and three signal LEDs. It operates on 3.3V power supply. On-board voltage regulator allows the board to be powered directly from USB cable.
Programming. Board comes preprogrammed with fast USB-UART bootloader, so no external programmers are needed for development.
Specification
| Architecture | ARM (32-bit) |
| MCU | STM32F051R8 |
| MCU speed | 48MHz |
| MCU Memory | 64KB of Flash, 8KB of RAM |
| On-board modules | 3 x LEDs, 2 x UART LEDs, 1 x Reset Button, USB-UART connector |
| Programming | Comes preprogrammed with UART bootloader |
| Integration | Pin compatible with PIC16F887 and PIC18(L)F45K20 in DIP40 packaging |
| Input Voltage | 5V (via USB) or 3.3V (via external source) |
Downloads
Write a review
Your Name:
Your Review:
Note: HTML is not translated!
Rating:
Bad
Good
Enter the code in the box below:
-
₹3,049.00
