MINI-32 Board

Product Code: MIKROE-763

MINI-32 Board

₹3,049.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Description

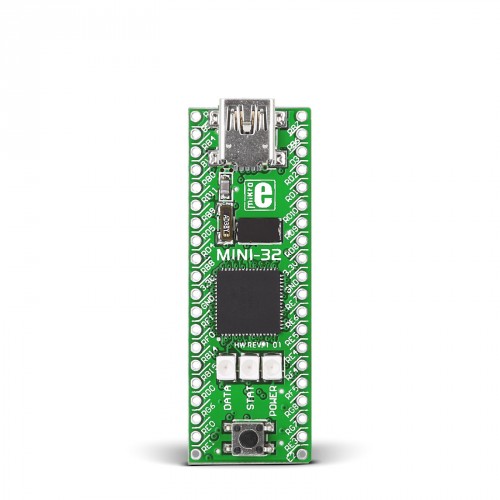

MINI-32 is a small development board containing PIC32MX534F064H microcontroller. It operates on 3.3V power supply. On-board voltage regulator allows the board to be powered directly from USB cable. It is pin compatible with PIC16F887 and PIC18(L)F45K20 microcontrontrollers and it perfectly fits into standard DIP40 socket. Board is equiped with SMD crystal oscillator, and 32.768KHz crystal which can be used for internal RTCC module. It has reset button and three signal LEDs.

Programming. Board comes preprogrammed with fast USB HID bootloader, so no external programmers are needed for development.

Specification

Architecture PIC32 (32-bit)
MCU PIC32MX534F064H
MCU speed 80MHz
MCU Memory 64KB of Flash, 16KB of RAM, 1KB boot Flash
On-board modules 3 x LEDs, 1 x Reset Button, USB 2.0 OTG connector
Programming Comes preprogrammed with USB HID bootloader
Key Features Supports CAN communication
Integration Pin compatible with PIC16F887 and PIC18(L)F45K20
Input Voltage 5V (via USB) or 3.3V (via external source)


Downloads

 MINI-32 Bootloader

 MINI-32 Examples

 MINI-32 User Manual
