MIC23099 click

Product Code: MIKROE-2765

MIC23099 click
MIC23099 click
MIC23099 click
MIC23099 click
MIC23099 click

₹3,049.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



MIC23099 click carries the MIC23099, a single AA/AAA cell step-down/step-up regulator with battery monitoring. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over the following pins on the mikroBUS™ line: CS, INT.

How the click works

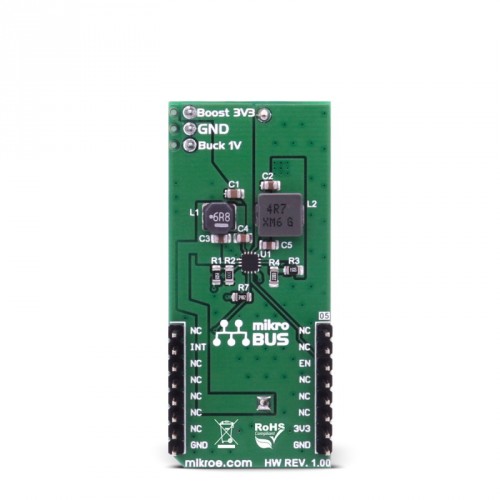

MIC23099 click has three screw terminals (Buck 1V, GND and Boost 3V3) which are outputs for connecting some external consumer.

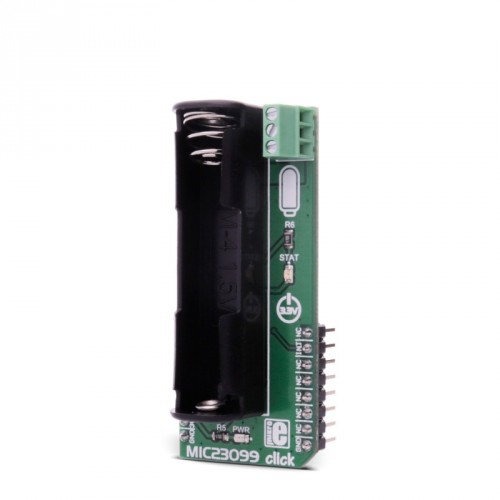

The low-battery level is indicated by an onboard STAT LED.



Note: The MIC23099 is not a battery charger and it needs a battery to work properly. The battery is not included.

MIC23099 features

The MIC23099 is a high-efficiency, low-noise, dual output, integrated power management solution for single-cell alkaline or NiMH battery applications.

To minimize switching artifacts in the audio band, both the converters are designed to operate with a minimum switching frequency of 80 kHz for the buck and 100 kHz for the boost. The high-current boost has a maximum switching frequency of 1 MHz, minimizing the solution footprint.

The MIC23099 incorporates both battery management functions and fault protection.

Specifications

Type Voltage regulator
Applications Voltage regulation for portable devices with AA or AAA batteries
On-board modules MIC23099 - a high-efficiency, low-noise, dual output, integrated power management solution for single-cell alkaline or NiMH battery applications
Key Features The low-battery level is indicated by an onboard STAT LED
Interface GPIO
Input Voltage 3.3V

Pinout diagram

This table shows how the pinout on MIC23099 click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes Pin Mikrobus logo.png Pin Notes
  NC 1 AN PWM 16 NC
  NC 2 RST INT 15 INT Power Good output pin
Enable input pin  EN 3 CS TX 14 NC
  NC 4 SCK RX 13 NC
  NC 5 MISO SCL 12 NC
  NC 6 MOSI SDA 11 NC
Power supply +3.3V 7 3.3V 5V 10 NC
Ground GND 8 GND GND 9 GND Ground

Programming

Code examples for MIC23099 click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

The following code snippet sets the EN pin to high, to enable the operation of this click.

01 sbit MIC23099_EN_PIN at GPIOD_ODR.B13;
02 void systemInit()
03 {
04     GPIO_Digital_Output( &GPIOD_ODR, _GPIO_PINMASK_13 );
05 }
06
07 void MIC23099_Click_Init()
08 {
09     MIC23099_EN_PIN = 1;
10 }
11
12 void main()
13 {
14     systemInit();
15     MIC23099_Click_Init();
16 }

Downloads

 mikroBUS™ Standard specification

 MIC23099 click datasheet

 MIC23099 click schematic

LibStock: MIC23099 click library
