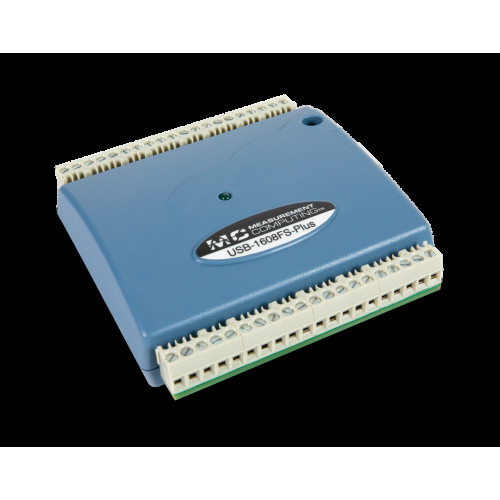

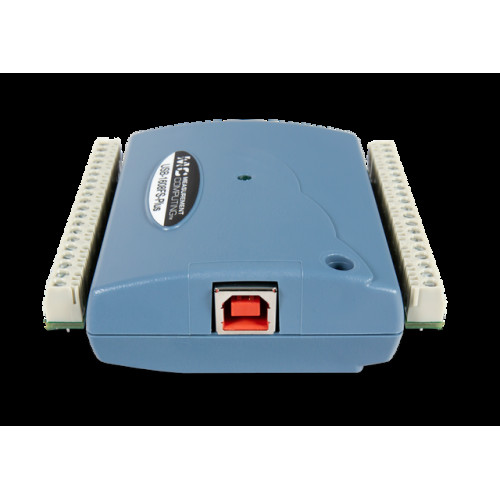

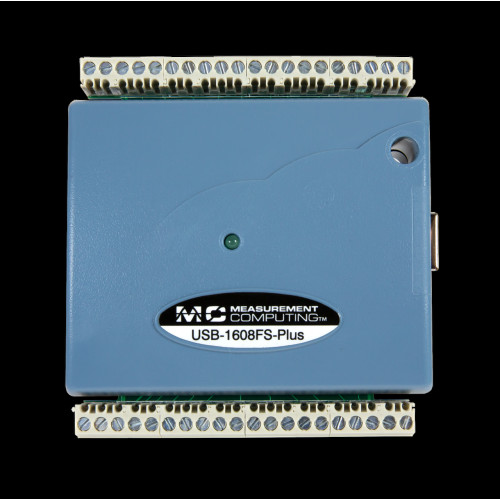

MCC USB-1608FS-Plus: Simultaneous USB DAQ Device

Product Code: DG 6069-410-015

MCC USB-1608FS-Plus: Simultaneous USB DAQ Device
MCC USB-1608FS-Plus: Simultaneous USB DAQ Device
MCC USB-1608FS-Plus: Simultaneous USB DAQ Device
MCC USB-1608FS-Plus: Simultaneous USB DAQ Device
MCC USB-1608FS-Plus: Simultaneous USB DAQ Device
MCC USB-1608FS-Plus: Simultaneous USB DAQ Device
Brand: Digilent

₹47,499.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The USB-1608FS-Plus features eight simultaneous analog inputs (A/D per channel), 16-bit resolution, 100 kS/s/ch sample rate (400 kS/s aggregate), one 32-bit counter, and eight digital I/O.

Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also included are drivers for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW, MATLAB®, Linux®, and Python.

An OEM, board-only version of the USB-1608FS-Plus with header connectors instead of screw terminals is available and can be ordered directly from MCC.

Features:

  • 8 SE simultaneous analog inputs
  • 16-bit resolution
  • 100 kS/s/ch sample rate (400 kS/s aggregate)
  • ±10 V, ±5 V, ±2 V, ±1 V input ranges
  • Eight digital I/O
  • One counter input
  • No external power required
  • Product Compliance:
    • HTC: 8471.80.9000
    • ECCN: EAR99

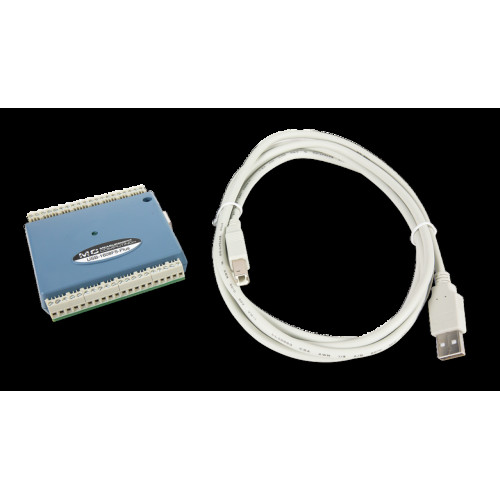

Included:

  • USB-1608FS-Plus
  • USB cable
  • Printed insert: DAQami Quick Start
  • MCC packaging assembly/foam, etc.

Software:

Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.

Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.

DAQami and DASYLab can be purchased directly from MCC.

For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW, MATLAB®, Linux®, and Python.
