Liquid Flow Meter - Brass 1/2" Nominal Threaded

DESCRIPTION

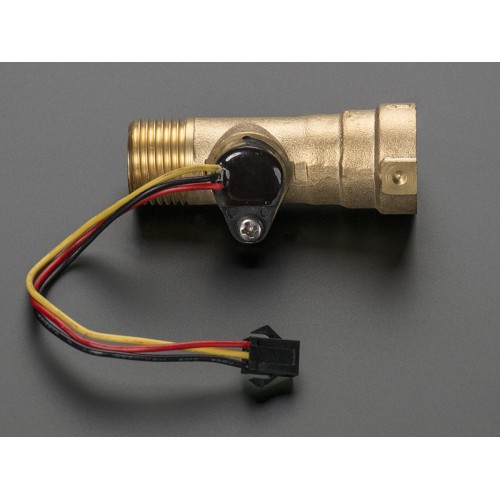

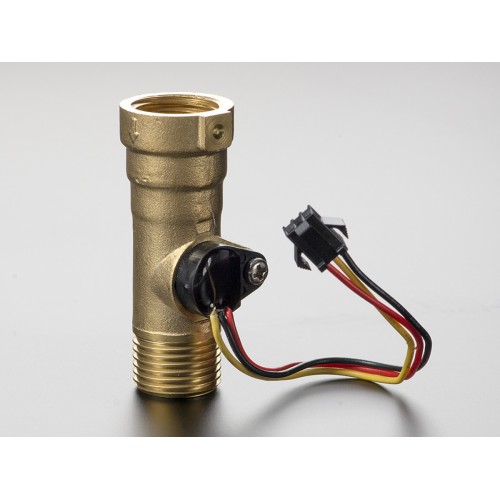

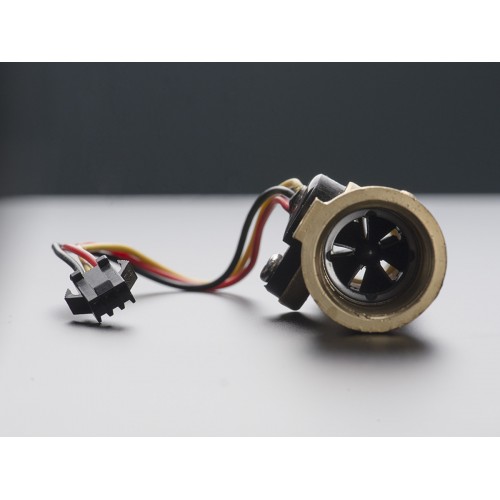

Measure liquid/water flow for your solar, computer cooling, or gardening project using this handy basic flow meter. This sensor sit in line with your water line, and uses a pinwheel sensor to measure how much liquid has moved through it. The pinwheel has a little magnet attached, and there's a hall effect magnetic sensor on the other side of the brass tube that can measure how many spins the pinwheel has made through the metal wall. This method allows the sensor to stay safe and dry.

The sensor comes with three wires: red (5-18VDC power), black (ground) and yellow (Hall effect pulse output). By counting the pulses from the output of the sensor, you can easily track fluid movement: each pulse is approximately 2 milliliters. Note this isn't a precision sensor, and the pulse rate does vary a bit depending on the flow rate, fluid pressure and sensor orientation. It will need careful calibration if better than 10% precision is required. However, its great for basic measurement tasks!

• TECHNICAL DETAILS

Electrical:

• Working Voltage: 5 to 18VDC
• Max current draw: 15mA @ 5V
• Working Flow Rate: 1 to 30 Liters/Minute
• Working Temperature range: -20°C to 80°C
• Working Humidity Range: 35%-80% RH
• Maximum water pressure: 1.75 MPa
• Output duty cycle: 50% +-10%
• Output rise time: 0.04us
• Output fall time: 0.18us
• Flow rate pulse characteristics: Frequency (Hz) = 8.1 * Flow rate (L/min) - 3
• Pulses per Liter: 485
• Durability: minimum 300,000 cycles

Mechanical:

• 1/2" nominal pipe connections, non-tapered, 0.78" outer diameter, 1/2" of thread
• The input of these adapters is 1/2" NPT aka National Pipe Thread (tapered) and the output is 1/2" BSPP aka British Standard Parallel Pipe (non-tapered).
• Size: 2.65" x 1.0" x 1.4"
