Linear Rail

Product Code: Dobot 0004

Linear Rail
Linear Rail
Brand: DOBOT

₹116,499.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

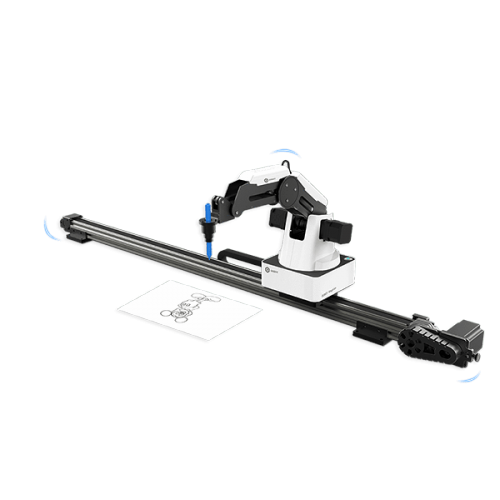

Make your robot go further with one meter extra working range! This Linear Sliding Rail Kit gives you access to even more potential uses for the Dobot. The working space of the Magician can be fully extended to do large-scale tasks, such as long-distance picking and placing, a large range of writing, drawing or laser engraving.

  • The high-precision industrial linear rail ensures the robot runs smoothly, coherently and accurately.
  • The full set of hex screwdrivers included makes it simple and easy to install/set-up.
  • With drag-chain cable carrier containing and protecting the cable, you can have smooth and safe using experience while all the wires are hidden.

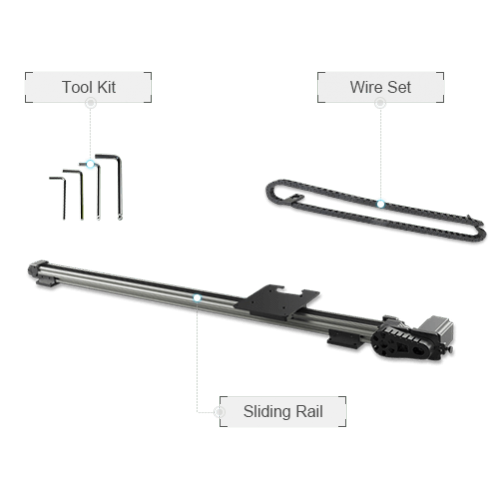

 Includes:

  • Sliding Rail
  • Wire Set
  • Tools Kit
  • Mounting Attachments
  • Assembly Instructions

Specifications:

  • Payload: 5KG (Max)
  • Effective Travel Distance: 1000m
  • Maximum Speed: 150 mm/s
  • Maximum Acceleration: 150 mm/s²
  • Repeat Positioning Accuracy: 0.01mm
  • Absolute Positioning Accuracy: 0.25mm
  • Net Weight: 4.7KG
  • Dimensions: 1320 x 120 x 55mm
