Li-ion Battery HAT for Raspberry Pi, 5V Output, Quick Charge

Overview

The Li-ion Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a 14500 battery, makes the Pi becomes a portable device. It will charge the battery as well, supports bi-directional quick charge. This module can be used as a universal mini power bank, also works with other 5V devices.

This is not a UPS, please note that the Raspberry Pi will restart when you connect it to the Pi. If you need a UPS, please check the UPS HAT.

Features

• Onboard SW6106 chip, supports bi-directional quick charge, supports multi quick charge protocols like PD/QC/FCP/PE/SFCP

• Lithium battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection
• Onboard indicators: quick charge, warning, and power capacity

Specifications

• Output voltage: 5V
• Applicable battery: 3.7V 14500 lithium battery (4.2V when full charged)
• Dimension: 65mm × 30mm
• Mounting hole size: 3.0mm

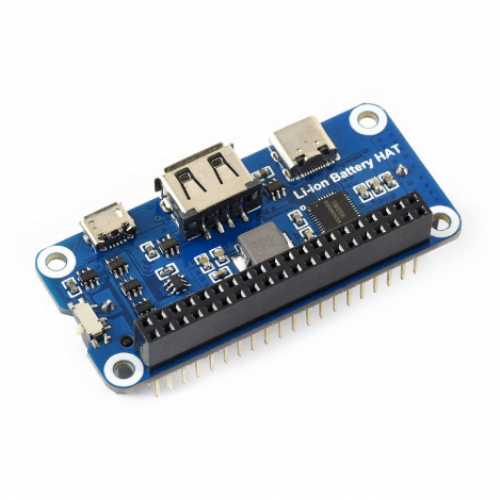

What's on Board

1. Raspberry Pi GPIO connector: for connecting Raspberry Pi
2. SW6106 power management chip
3. USB Type-C connector: battery charge/power output
4. USB Type-A connector:power output
5. Micro USB connector:battery charge
6. Raspberry Pi power switch
7. Battery warning indicator: on when the battery is reverse
8. Battery power capacity indicator: 5x LEDs to indicate the power capacity and charging status
9. Quick charge indicator: on when quick charging
10. 14500 battery holder

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/Li-ion_Battery_HAT

Package Content

Weight: 0.021 kg

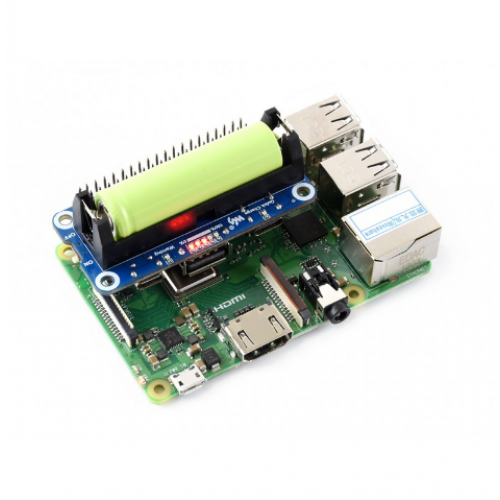

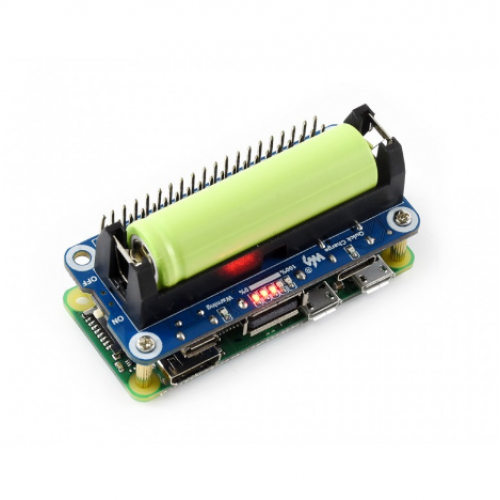

Note: the Raspberry Pi and 14500 battery in the photo are NOT included.

1. Li-ion Battery HAT x1
2. RPi screws pack (2pcs) x1
