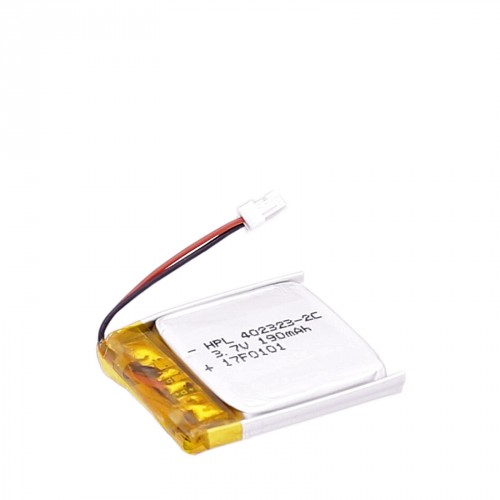

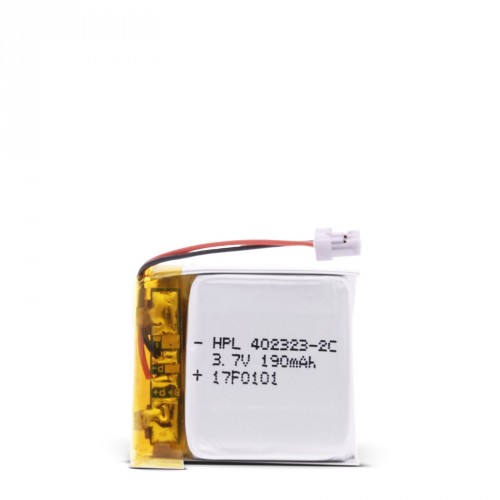

Li-Polymer Battery 3.7V 190mAh

Li-Polymer Battery 3.7V 190mAh

Li-Polymer Battery is the best solution for adding an autonomous and stable power supply to your devices that require mobility and long-lasting energy source. With its 3.7 voltage, 190 mAH capacity and 4.5g approximate weight it is a compact and reliable power source.






Specifications


• Connector: JST-SHR-02V-S

• Nominal voltage: 3.7V

• Voltage at end of discharge: 3.0V

• Charging voltage: 4.2±0.03V

• Capacity: 190 mAH

• Thickness: max. 4.2mm

• Width: max. 23.5mm

• Length: max. 24.5mm

• Weight: approx. 4.5g

Downloads

 Li-Polymer Battery 3.7V 190mAh Specification

 UN38.3 Test Report
