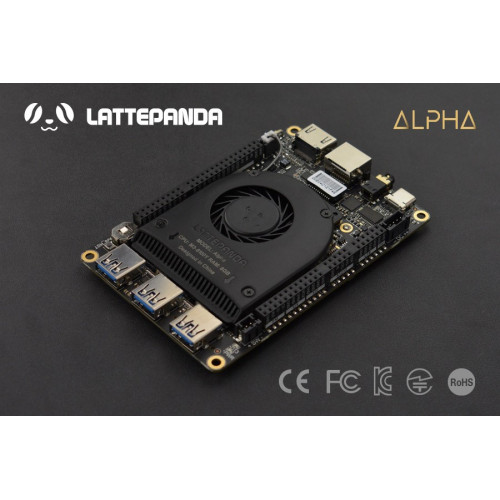

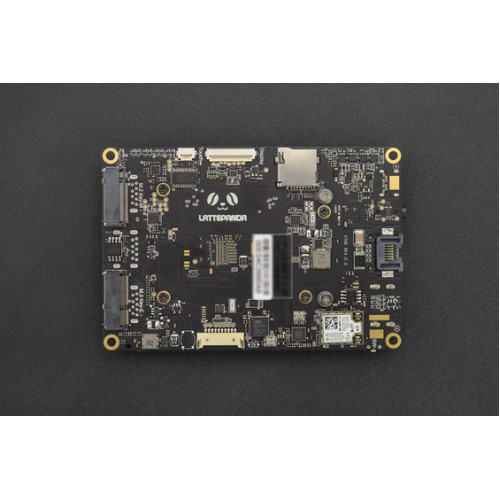

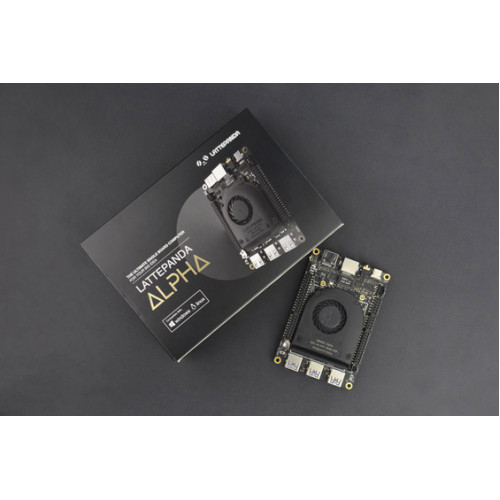

LattePanda Alpha 864s (Win10 Pro activated) – Tiny Ultimate Windows / Linux Device

Product Code: DFR0547

LattePanda Alpha 864s (Win10 Pro activated) – Tiny Ultimate Windows / Linux Device
LattePanda Alpha 864s (Win10 Pro activated) – Tiny Ultimate Windows / Linux Device
LattePanda Alpha 864s (Win10 Pro activated) – Tiny Ultimate Windows / Linux Device
LattePanda Alpha 864s (Win10 Pro activated) – Tiny Ultimate Windows / Linux Device
LattePanda Alpha 864s (Win10 Pro activated) – Tiny Ultimate Windows / Linux Device
LattePanda Alpha 864s (Win10 Pro activated) – Tiny Ultimate Windows / Linux Device
Brand: DF Robot

₹49,579.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



LattePanda Alpha 864s (Win10 Pro activated) is a high-performance, palm-sized SBC (single board computer)with low power consumption that runs full Windows 10 or Linux operation system. It is widely used in edge computing, vending, advertising machine, industrial automation, etc. Whether you're a DIY maker, IoT (Internet of Things) developer, system integrator, or solution provider, LattePanda is your powerful development board that can empower creation and accelerates your productivity.

LattePanda Alpha

Key Feature

  • Intel® Core™ M3-8100Y,  Dual-Core, 1.1-3.4GHz
  • Intel® UHD Graphics 615
  • 8GB Memory
  • Dual-Band 2.5GHz/5GHz Wi-Fi & Bluetooth 4.2 & Gigabit Ethernet
  • USB3.0 x3,USB Type-C x1
  • 2 x M.2 PCIe (Support B&M Key and A&E Key)
  • Support Windows 10 & & Linux OS

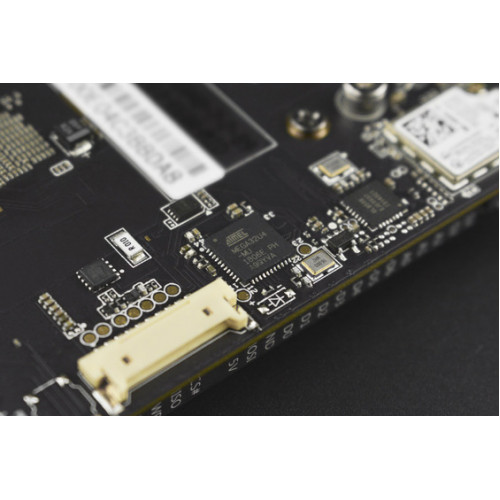

  • Integrated Arduino Coprocessor ATMEL 32U4
  • Powered by PD adapter / 12V DC / 7.4V battery

The LattePanda Alpha 864s (Win10 Pro activated) based on Intel Core™ m3-8100Y, is a Dual-Core 1.1GHz CPU that bursts up to 3.4GHz, Intel® UHD Graphics 615 integrated into the processor deliver enhanced media conversion, fast frame rates, and 4K Ultra HD (UHD) video. All of this computing power dissipates only 8W power, which is the perfect choice in terms of features and price as the main robotics controller, interactive project core, IoT edge device, or AI brain.

LattePanda CPU

The LattePanda Alpha is perfect for makers alike who need a small, portable, and light SBC for their ultimate project! DIY project running the Windows or Linux, LattePanda SBC has been a popular hit and choice for many people who wish to enjoy playing all of their old and new favorites from one small, powerful system. Given its incredibly small size, it can be easily hidden, functioning as the secretly powerful brains behind your coolest project ever.

LattePanda Alpha Size

LattePanda Alpha Design

LattePanda pre-installed Win10 pro operating system but also supports Linux. We have the complete installation tutorial in our Docs and provide the latest version support in time.

LattePanda Alpha Win10 Pro

LattePanda Alpha LINUX OS

LattePanda Alpha 42 Ports

LP Alpha and Delta

Embedded DisplayPort (commonly referred to as eDP) is a full-digital interface based on the VESA DisplayPort architecture and protocol, which can use simpler connectors and fewer pins to transmit high-resolution signals as well as allow higher transmission speeds as opposed to LVDS cables.

Another benefit of eDP interface is that they allow you to easily connect your LattePanda directly to an LCD.

LattePanda Alpha For Embedded Solutions

Type-C interface allows the seamless connectivity of data, PD power supply, and 4K video output, which not only solves the problem of messy desktop wires but also makes it more convenient to transfer equipment. With more efficient transmission capacity, richer expandability, simple and convenient connection, it has become one of the world’s consumer electronics standards.

LattePanda ConnectorThere are two M.2 PCIe connectors (B&M Key and A&E Key), which enable various expandable capabilities including SSD, GPU, Wired, and Wireless Network.

LattePanda Alpha interfacesIn addition, LP has more types of interfaces, which can be directly connected with,for example, HDMI and Internet cable. Independent USB 3.0 interfaces can be connected to USB2.0 & 3.0 devices. No need for additional docking stations to connect to peripherals, LP can be embedded in your project like a plug-in device. Say goodbye to your bulky laptop!

LattePanda Alpha interfacesThe teams here at LattePanda have worked hard to provide careful and thorough guides and documentation for our products, and their effectiveness has become amplified by our strong community of LattePanda users who have made posts, threads, and contributions to others in the community. With our combined strength, no project is out of reach for any user!

LattePanda Community

LattePanda Documents

 Comparison Tables

Model

CPU

Core

Memory

Storage

Operating System

LattePanda Alpha 800s

Intel Core M3-8100Y

2

8 GB

0GB

N/A

LattePanda Alpha 864s

Intel Core M3-8100Y

2

8 GB

64GB

N/A

LattePanda Alpha 864s (Win10 Pro activated)



Intel Core M3-8100Y

2

8 GB

64GB

Windows 10 Pro

Activated

SPECIFICATION

LattePanda Alpha 864s (Win10 Pro activated) TECH SPECS

  • CPU: Intel Core m3-8100y
  • Core: 1.1-3.4GHz Dual-Core,Four-Thread
  • Benchmark (PassMark): Up to 4128, double computing power compared with same price range products in the market
  • Graphics: Intel HD Graphics 615, 300-900MHz
  • RAM: 8GB LPDDR3
  • External Memory:
  •             1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD
                1x M.2 E Key, PCIe 2x,Supports USB2.0, UART, PCM
  • Connectivity:
  •             WIFI 802.11 AC, 2.4G & 5G
                Dual-Band Bluetooth 4.2
                Gigabit Ethernet
  • USB Ports:
  •             3x USB 3.0 Type A
                1x USB Type C, supports PD, DP, USB 3.0
  • Display:
  •             HDMI Output
                Type-C DP Support
                Extendable eDP touch displays
  • Co-processor: Arduino Leonardo
  • GPIO & Other Features: 2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC,Power Management,Extendable power button,everything you need
  • OS Support:

            Windows 10 Pro

            Linux Ubuntu

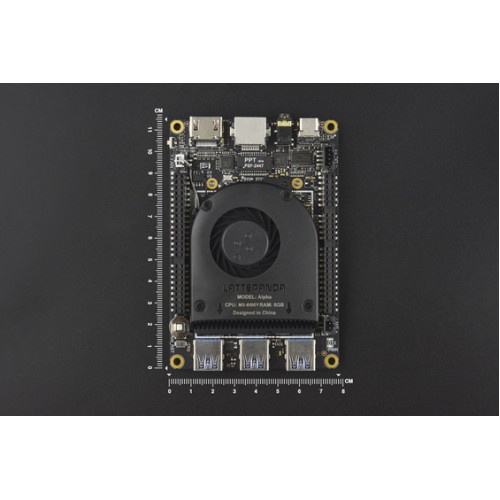

  • Dimension: 115mm * 78mm * 14 mm

DOCUMENTS

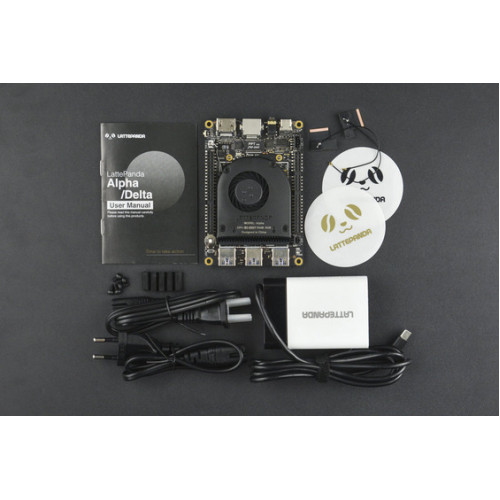

SHIPPING LIST

  • LattePanda Alpha 864s (Win10 Pro activated) x1
  • Active cooling fan (Assembled) x1
  • 45w PD Power adapter (with EU & US standard power cord)  x1
  • Dual-band antenna x2
  • RTC Battery (Assembled)x 1
  • User Manual x 1
