Kinetis Clicker

Product Code: MIKROE-2330

Kinetis Clicker
Kinetis Clicker
Kinetis Clicker
Kinetis Clicker

₹2,629.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

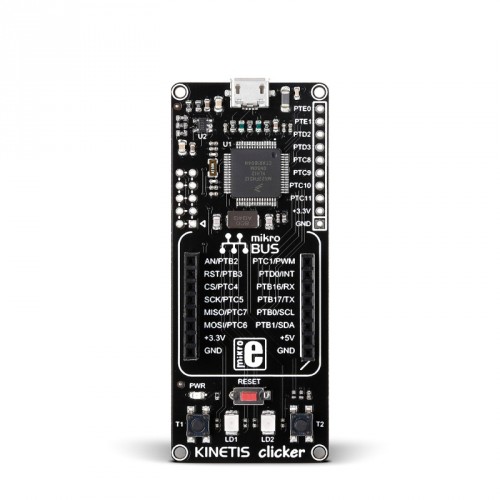

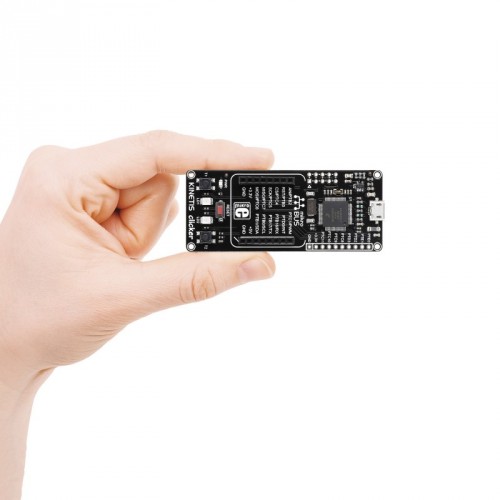

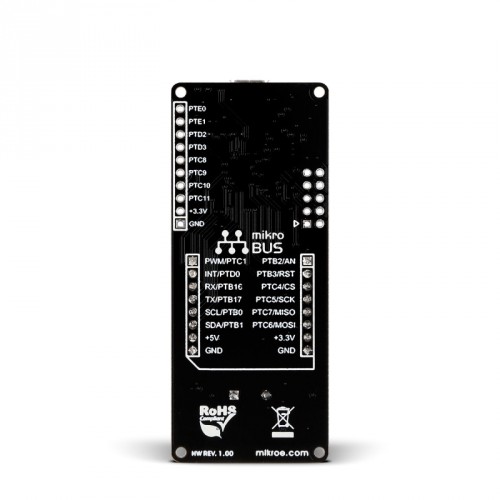

Kinetis clicker is an amazingly compact starter development kit which brings click board connectivity an NXP's Kinetis ARM Cortex™-M4 microcontroller. The board features all you need to get started: a low power ARM Cortex™-M4 32-bit MK22FN512VLH12 microcontroller, a USB connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.

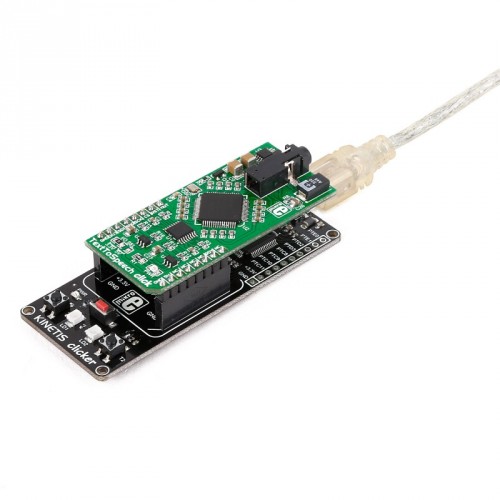

Hundreds of possibilities with click boards. With mikroBUS™ socket, you can take advantage of the huge potential of click™ boards, the constantly expanding range of over 200 add-on boards.

Programming. To make your prototyping experience as convenient as possible, Kinetis clicker is preprogrammed with a USB HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. On-board mikroProg for Kinetis connector enables programming through external programmer/debugger.

Specification

Applications This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas
Architecture ARM (32-bit)
MCU MK22FN512VLH12
MCU speed 150 MIPS, 120 MHZ, 1.25 MIPS/MHz
MCU Memory 512 KB of Flash, 128 KB of RAM
On-board modules 1 x USB MINI-B connector, 2 x LEDs, 2 x push buttons, 1 x reset button
Programming Preprogrammed with USB HID bootloader. Also features mikroProg for Kinetis connector.
Input Voltage 5V (via USB)

Downloads

 Kinetis clicker bootloader

 Kinetis clicker Examples

 Matrix R click Examples

 Kinetis clicker schematic
