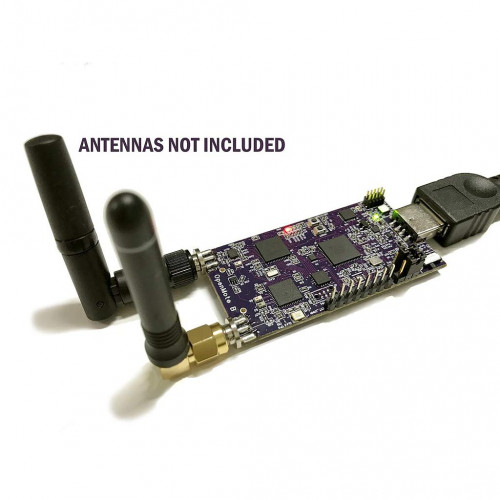

OpenMote B

Description

OpenMote B is the NEW Industrial Shields manufactured product. It is the Natural evolution of the Telos B. Designed in Berkeley. It has more than 10 years of experience of "motes" to support The Open protocol stacks for the IoT.

Main characteristics

• Ti CC2538 SoC (512kb Flash 32kb RAM)
• Atmel AT86RF215 SubGHz Radio (868/915MHz)
• Supports all IEEE802.15.4g modulations.
• Simultaneous dual radio Operation

Programming:

• Programming over BSL
• Supported in Contiki and OpenWSN for IETF6TiSCH experimentation
• JTAG and OCD compliant
• USB Interface

Technical characteristics:

• Temperature, relative humidity sensors
• 4x Leds indicators
• 2xAA Battery placeholder
• 2.4GHz SMA Antenna
• SubGHz SMA Antena
•

NOTE:

• * The consumption depends on the functionality and connectivity of the device.

Build an IoT network

(Industrial) Internet of Things

OpenMote B
OpenMote B is a Raspberry compatible IoT harware in compliance with the standard IEEE802.15.4g and it can be programmed by Open Source platforms.

Based on FreeRTOS kernel you can configure the OpenMote network according at your needs. There is also possible to configure an IoT aplication using Open Source software which is called "contiki" (https://en.wikipedia.org/wiki/Contiki)
