Industrial RS232/RS485 to Ethernet Converter for EU

Comes with EU plug power adapter. More options for the power plug: US, EU

Industrial RS232/RS485 to Ethernet Converter, Dual Serial Ports, Easy-to-use, High-speed, Low-power, High-stability, Upgradable

Overview

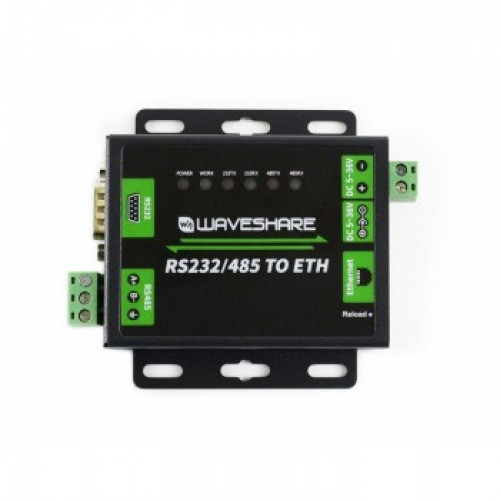

The RS232/485 TO ETH is an industrial RS232/RS485 to Ethernet converter, which allows bi-directional transparent data transmission between RS232/RS485 and RJ45 port Ethernet, even at the same time, it can be configured via webpage.

Features

• M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable
• 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
• Both RS232 and RS485 interface, allows to work independently at the same time, without interfering each other
• Configurable baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
• Multi indicators, for monitoring communicating and working status
• Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
• Supports Modbus, suit for industrial application
• Supports Websocket, allows bi-directional transparent data transmission with RS232/RS485 port via webpage directly
• Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
• Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
• Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
• Supports customized webpage, allows user to customize the module configuration page
• Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
• KeepAlive mechanism, detects broken connection, auto re-connecting
• Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
• Supports DNS domain name resolution, configurable DNS server
• Supports DHCP, auto-obtained IP or static IP
• Firmware is upgradable via the network
• Restore to factory settings via software and/or hardware
• Comes with default MAC address, which is customizable
• Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
• Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

Specifications

• Ethernet:

  • Connector: 4-pin RJ45
  • Communication rate: 10/100Mbps
  • Interface protection: 2KV electromagnetic isolation
  • Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client, Websocket
  • TX cache: 16Kbyte
  • RX cache: 16Kbyte
• RS485/RS232:
  • Connector:
    • RS485: screw terminal (A+, B-, GND)
    • RS232: DB9 male
  • Data bit: 5bit, 6bit, 7bit, 8bit
  • Stop bit: 1, 2
  • Parity bit: None, Odd, Even, Mark, Space
  • Baudrate: 600bps~230.4Kbps
  • TX cache: 2Kbyte
  • RX cache: 2Kbyte
  • Hardware flow control: RTS/CTS
  • Interface protection:
    • RS485: 2KV ESD protection, lightning-proof, anti-surge, over-current protection
    • RS485 pull up/down registers: 2.2KΩ
• Power:
  • Power supply: 5.0~36.0V (5V recommended)
  • Operating current: 86.5mA (@5V)
  • Power consumption: <1W
  • Interface protection: reverse-proof, ESD protection, anti-surge
• Environment:
  • Operating temperature: -40~85°C
  • Storage temperature: -40~105°

Dimensions

Includes

1. RS232/485 TO ETH x1
2. 5V power adapter (EU plug) x1
3. Ethernet cable x1
4. Male-to-Female serial cable x1
5. Female-to-Female serial cable x1

Development Resources

Wiki : www.waveshare.com/wiki/RS232/485_TO_ETH
