I2C Isolator Click

Product Code: MIKROE-1878

Brand: MikroElektronika

0 reviews | Write a review

₹1,889.00

GST inclusive

Qty:

Availability: Backorder

Add to Wish List

Description

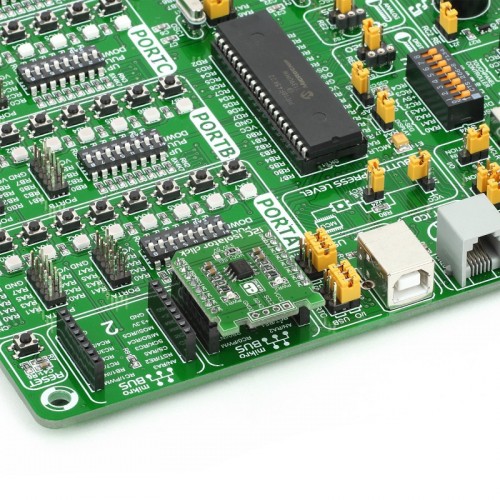

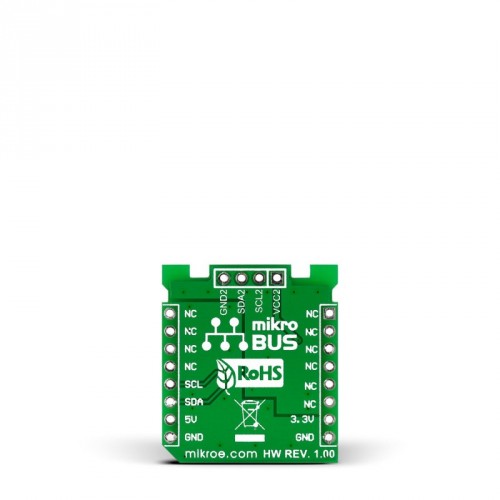

I2C Isolator click carries ISO1540, a low-power, bidirectional isolator compatible with I2C interfaces. On the board, the Texas Instruments chip is connected to two sets of I2C pins, one on the mikroBUS connector (SDA, SCL), the other on the upper edge of the board (SCL2, SDL2). ISO1540 uses a silicon dioxide barrier that separates the logic input and output buffers. Bidirectional isolators based on TI’s Capacitive Isolation technology have many advantages over opto-couplers (performance, size, power consumption etc.). When used together with isolated power supplies, they block high voltages, isolate grounds, and prevent interference from from noise currents.

Specification

Type	Isolator
Applications	SMBus and PMBus Interfaces, Open-drain networks, Motor Control systems, Battery Management, I2C Level Shifting etc.
On-board modules	ISO1540 Bidirectional isolator
Key Features	Two sets of I2C pins. Two isolated bidirectional channels for clock and data lines
Key Benefits	Having two isolated bidirectional channels for clock and data lines, I2C isolator click is suitable for use in applications that have multiple masters
Interface	I2C
Input Voltage	3.3V or 5V
Compatibility	mikroBUS

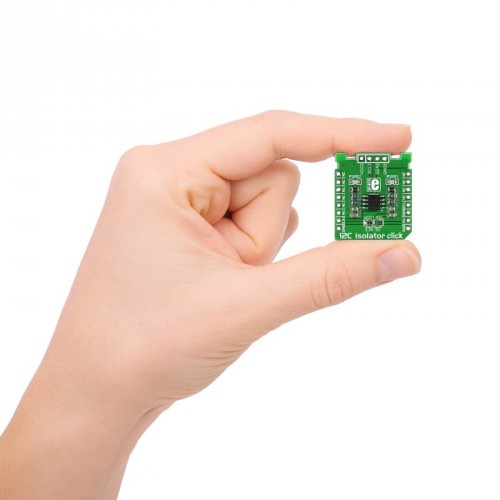

Click board size	S (28.6 x 25.4 mm)
