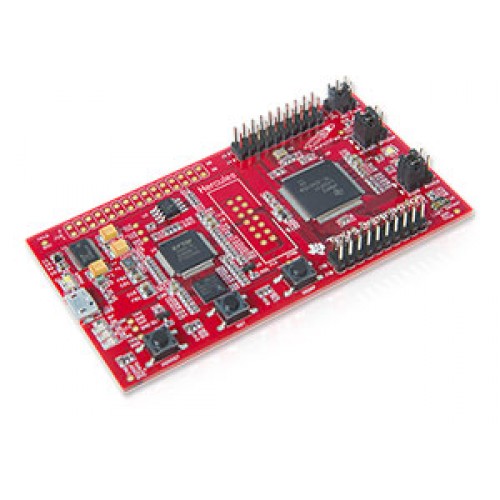

Hercules TMS570LS04x/03x LaunchPad Evaluation Kit

The Hercules TMS570LS04 LaunchPad is an inexpensive evaluation platform designed to help users evaluate and get started on development with Hercules microcontroller platform. The launchpad is based on Hercules TMS570LS0432, which is a dual core lock-step ARM Cortex-R4 based MCU with features like 12-bit ADC, N2HET with programmable timer pins, eQEP, MibSPI and serial communication interfaces.

The LaunchPad comes pre-programmed with Hercules Safety MCU Demo enabling users to easily learn about the key safety, data acquisition and control features of the Hercules MCU platform.

The LauchPad features on-board emulation for programming and debugging, on-board buttons, LEDs and ambient light sensor & the standard 40 pin BoosterPack-compatible expansion header to support a wide range of plug-in modules for added functionality such as displays & more.

Find more info about LaunchPad, the supported BoosterPacks & available resources at our LaunchPad portal page! Also be sure to visit our LaunchPad wiki. http://processors.wiki.ti.com/index.php/Hercules_LaunchPad

Explore more about the launchpad ecosystem and different applications on your LaunchPad with BoosterPack plug-in modules here.

Features

• USB powered

• On board USB XDS100v2 JTAG debug

• On board SCI to PC serial communication

• Two LEDs

• Reset switches

• Ambient light sensor

• 40 pin BoosterPack XL Header

• Footprint for an expansion header (not populated) to bring out all MCU Pins

• External high-speed emulation via 14-pin TI-JTAG header (not populated)

What's Included

• TMS570LS0432 LaunchPad Evaluation board

• USB micro cable

• Quick Start Guide
