Grove - Recorder

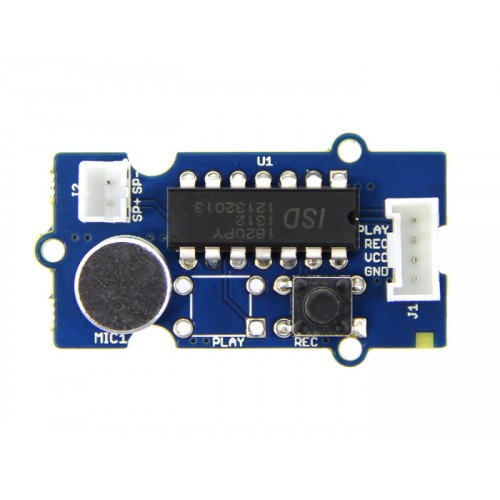

Grove - Recorder is based on ISD1820P, which can record 8~20 sec by set resistor and cycle play. It can offers true single-chip voice recording, no-volatile storage. Grove - Recorder is 100K and the total 10s for Recorder. This module is very easy to control, which can direct control by push button on board or by microcontroller.

Features

• Grove connector

• Lower power consumption

• Non-volatile storage

• User-friendly

• Replacing a single resistor to change sample rate.

• Add a resistor to set play cycle mode

Technical Details

Part List

Documents

• Grove - Recorder v1.0 Schematics (Eagle files)
• Datasheet ISD1820P.pdf (Chinese)
• Grove - Recorder v1.0 Schematics (pdf)
