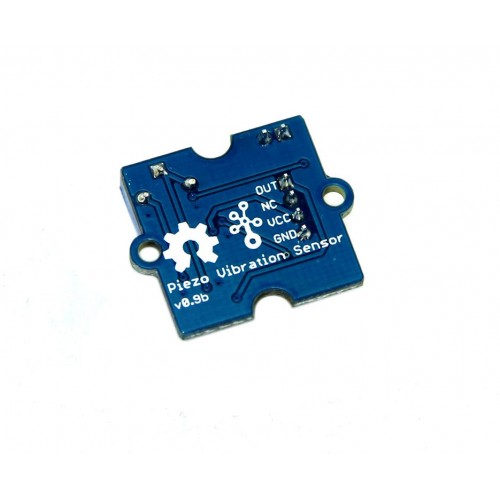

Grove - Piezo Vibration Sensor

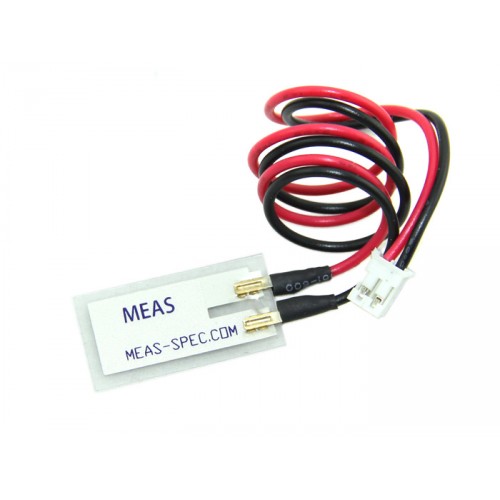

Grove- Piezo Vibration Sensor is suitable for measurements of flexibility, vibration, impact and touch. The module is based on PZT film sensor LDT0-028. When the sensor moves back and forth, a certain voltage will be created by the voltage comparator inside of it.

Therefore, outputs high & low levels. In spite of the fact that it has a high receptivity for strong impacts, a wide dynamic range (0.001Hz~1000MHz) also guarantees an excellent measuring performance. Finally, you can adjust its sensitivity by adjusting the potentiometer with a screw.

Features

• Standard grove socket

• Wide dynamic range：0.001Hz~1000MHz

• Adjustable sensitivity

• High receptivity for strong impact

Applications

• Vibration Sensing in Washing Machine

• Low Power Wakeup Switch

• Low Cost Vibration Sensing

• Car Alarms

• Body Movement

• Security Systems

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.

Technical Details

Part List
