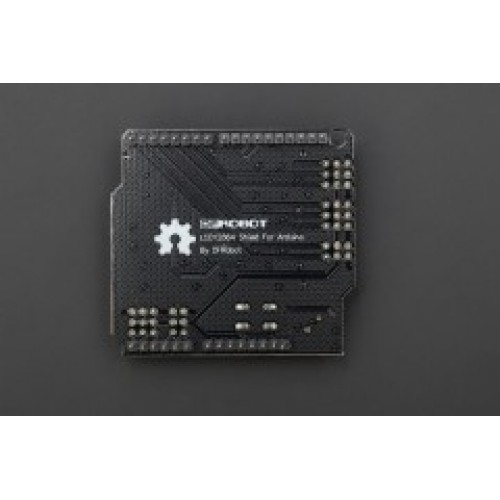

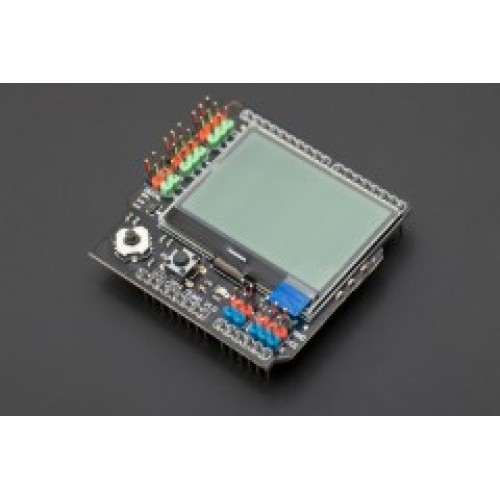

Gravity: LCD12864 Shield for Arduino

INTRODUCTION

This framed LCD12864 Shield with LED backlight is compatible with most of Arduino controllers and supports English/Chinese/Picture display. With 5 analog extension pins and 8 digital pins, the LCD12864 Shield also integrates a 5-key joystick for controlling additional functions, making it an ideal module for prototyping and interactive projects.

Related Blogs

How to DIY an Indoor Carbon Dioxide Detector

SPECIFICATION

• Power supply: 3.3V

• Pin used: D7, D8, D9, D10, D11, D13, A0
• Reset button
• 5 degree joystick (using Arduino Analog Pin 0)
• Backlit control (using Arduino Digital Pin 7)
• Extra 5 Analog pins & 8 Digital pins
• Size:60x55x20mm(2.36x2.16x0.79")

DOCUMENTS

• Wiki Doc
• Schematic
• U8glib library For Arduino
• Sample Code

• Bitmap Converter

SHIPPING LIST

• LCD12864 Shield  x1
