Graphic ST7565 Positive LCD (128x64) with RGB backlight + extras - ST7565

• This product has been discontinued

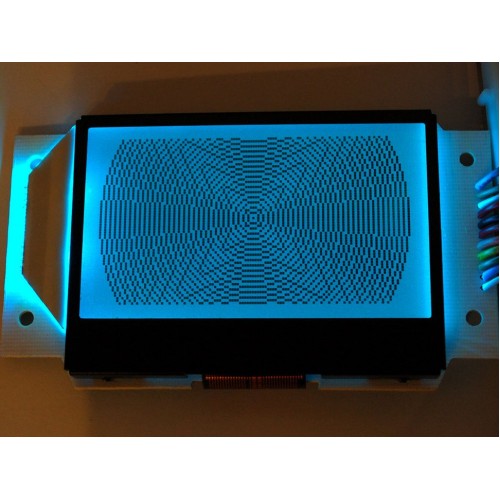

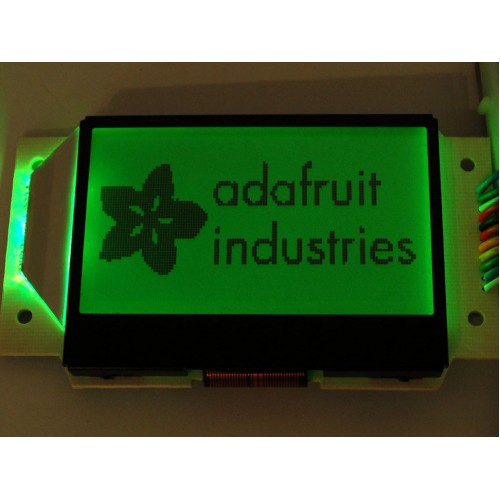

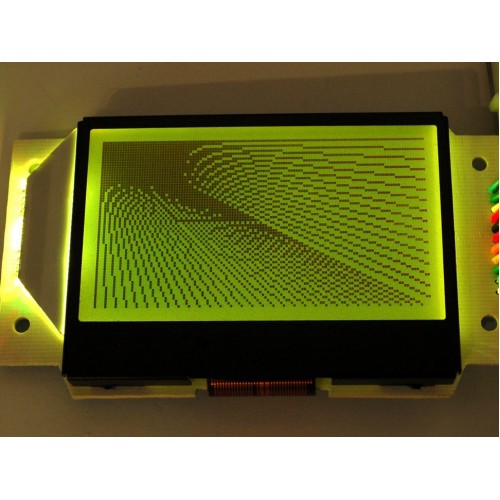

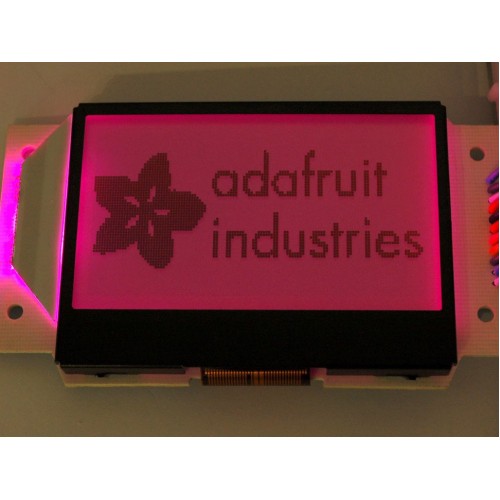

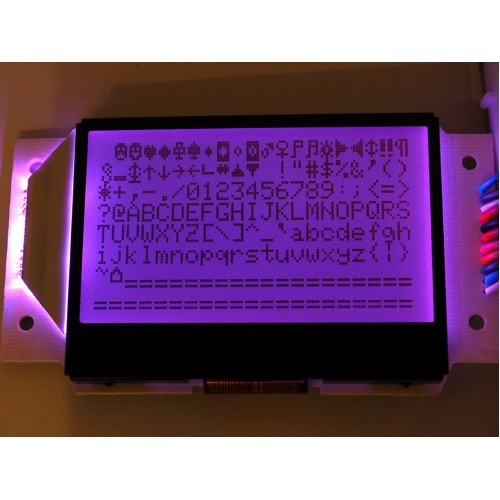

• This graphical display looks great, costs less! The dark gray pixels are visible in daylight, and there's also a full RGB LED backlight, which you can control with PWM to make any color you can imagine.

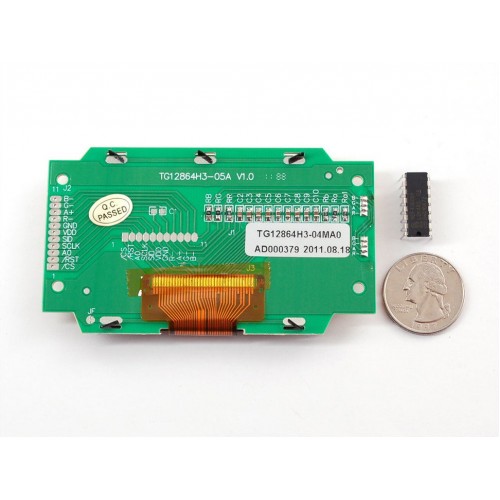

  Four mounting holes and a blank 11 pin 2mm-pitch labeled breakout on the side - we just soldered some wire to each hole as shown in the photos, its very easy. (The LCDs have no wires soldered in when we ship them)

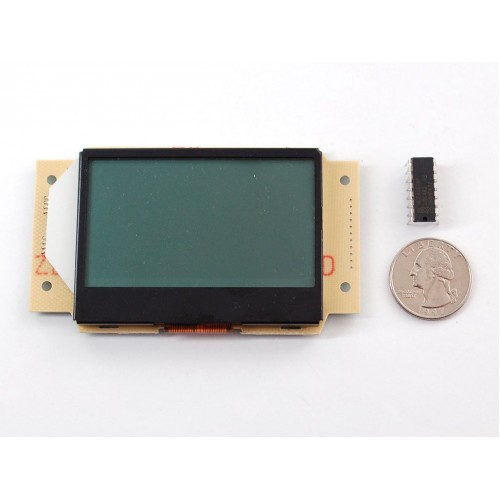

  Bonus! We're including a free 4050 level shifter chip so that you can safely use it with your favorite 5V microcontroller

  Advantages!

  • Lower cost than KS0108 LCDs
  • Serial interface uses only 4 or 5 digital pins
  • Low power, full-color RGB LED backlight
  • Visible in daylight without backlight
  • Works perfectly with 3V logic

  Challenges!...

  • 3.3v power and logic means a level converter is needed for 5V Arduinos (we include this part when purchasing from us)
  • Microcontroller must buffer display - uses 1Kb of RAM. This means you must upgrade to a ATmega328 if you are using an Arduino with a '8 or '168

  For a more detailed tutorial, including how to wire up the display with a 4050, see our writeup at http://www.ladyada.net/learn/lcd/st7565.html

  We have C code and an Arduino library ready to go (we suggest reading the above tutorial too!)

Technical Details

• Datasheet for RGB backlight version including dimensional drawing

  Datasheet for older 'white' LED backlight version
