GNSS3 click

Product Code: MIKROE-1895

Brand: MikroElektronika

0 reviews | Write a review

₹4,099.00

GST inclusive

Qty:

Availability: Backorder

Add to Wish List

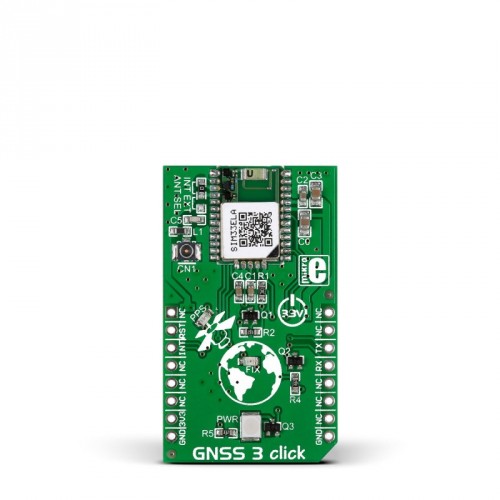

GNSS3 click carries SIMCom’s SIM33ELA standalone GNSS module with an integrated antenna (and a connector for an external one). GNSS stands for Global Navigation Satellite System, an umbrella term that describes both the United States GPS and the Russian GLONASS global positioning systems. The SIM33ELA module has MTK’s high sensitivity navigation engine. It features EPO™ orbit prediction, AGPS, SBAS ranging (WAAS, EGNOS, GAGAN, MSAS). GNSS3 click communicates with the target MCU through mikroBUS UART pins (RX, TX), with additional functionality provided through RST and INT pins. The board uses a 3.3V power supply.

Specification

Type	GPS
Applications	Navigation devices based on GPS and GLONASS global positioning systems
On-board modules	SIMCom’s SIM33ELA with integrated antenna
Key Features	MTK high sensitivity navigation engine. TTFF: 28 seconds (cold), 26s (warm), less than 1 (hot). Sensitivity: -165 dBm tracking; -160 dBm reacquisition; -146 dBm cold start
Key Benefits	EPO™ orbit prediction. EASY™ self-generated orbit prediction
Interface	GPIO,UART
Input Voltage	3.3V
Compatibility	mikroBUS
Click board size	M (42.9 x 25.4 mm)
