GNSS click

Product Code: MIKROE-1850

Brand: MikroElektronika

0 reviews | Write a review

₹4,829.00

GST inclusive

Qty:

Availability: Backorder

Add to Wish List

Description

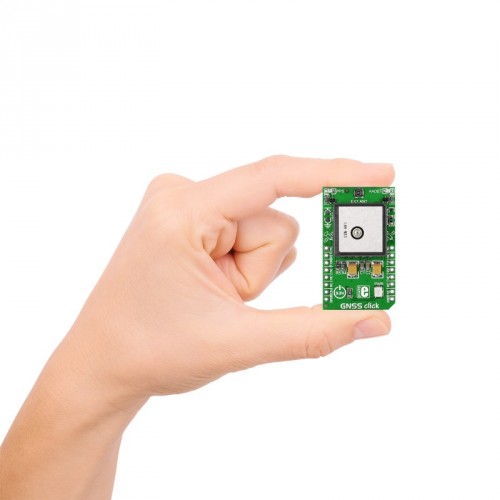

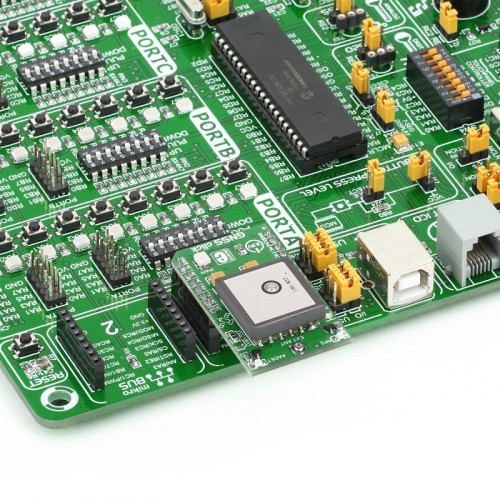

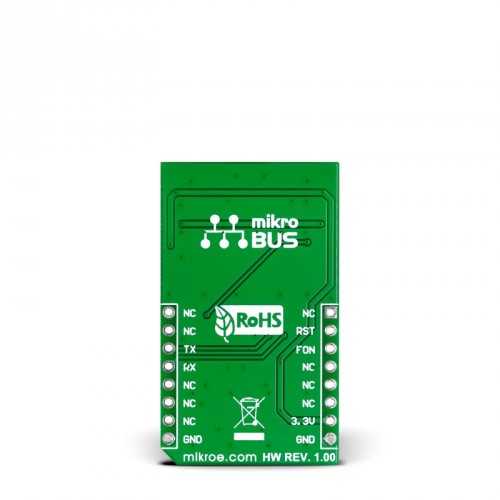

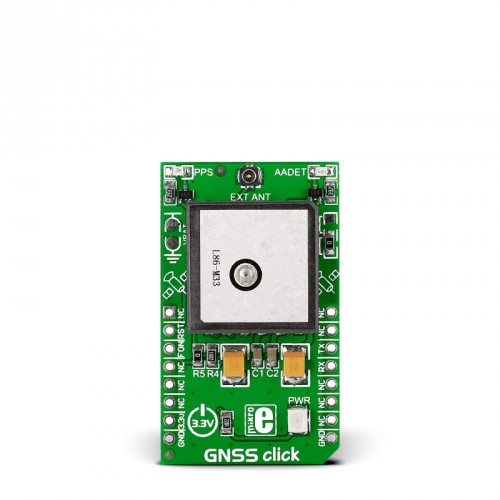

GNSS click carries Quectel’s L86 GNSS module with a patch antenna along with an external antenna connector. GNSS stands for Global Navigation Satellite System, an umbrella term that describes both the United States GPS and the Russian GLONASS global positioning systems. Excluding its wider applicability, the L86 module is similar to the L80 module (used on GPS3 click). It includes the same set of technologies: automatic prediction of orbits from internally stored data, adaptive adjusting of on/off time to balance between positioning accuracy and power consumption etc. The board uses a 3.3V power supply.

Specification

Type	GPS
Applications	Navigation devices based on GPS and GLONASS global positioning systems
On-board modules	Quectel’s L86 GNSS
Key Features	Onboard Patch antenna; external antenna connector also available. Acquisition -148dBm; Tracking -165dBm
Key Benefits	Compatible with both GPS and GLONASS. High sensitivity and low power consumption
Interface	GPIO,UART
Input Voltage	3.3V
Compatibility	mikroBUS
Click board size	M (42.9 x 25.4 mm)

Downloads

GNSS Click Examples

GNSS Click User Manual
