FM click

Product Code: MIKROE-1431

Brand: MikroElektronika

0 reviews | Write a review

₹3,049.00

GST inclusive

Qty:

Availability: Backorder

Add to Wish List

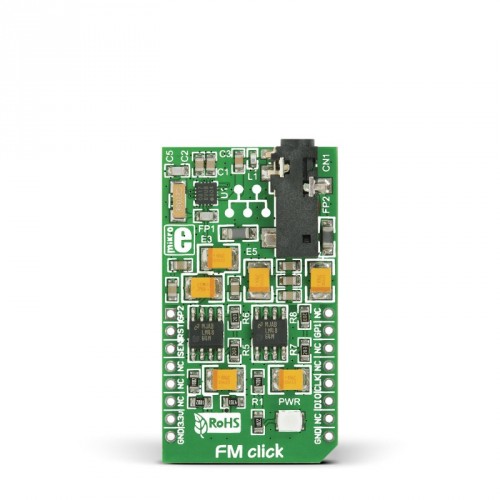

FM Click with it’s Si4703 IC is a complete FM radio tuner in the form of add-on board. It supports worldwide FM band (76 – 108 MHz). The board contains two LM4864 audio amplifiers as well. Si4703 has a nice set of features like automatic frequency and gain control, RDS/RBDS processor, seek tuning and volume control. FM antenna is provided through the earphones cable (recommended length between 1.1 and 1.45 m), which is plugged into on-board 3,5mm audio connector. FM Click has simple I2C interface. All these features make this board ideal for MP3 players, portable radios, PDAs, notebook PCs, portable navigations and many more. The board is designed to use 3.3V power supply only.

Specification

Type	FM
Applications	Board is ideal for MP3 players, portable radios, PDAs, notebook PCs, portable navigations and many more
On-board modules	Si4703 IC, LM4864 audio amplifiers
Key Features	Worldwide FM band support (76–108 MHz)
Key Benefits	Suports seek tuning, adaptive noise suppression, volume control, signal strength measurement and more
Interface	GPIO
Input Voltage	3.3V
Compatibility	mikroBUS
Click board size	M (42.9 x 25.4 mm)

Downloads

FM Click Examples

FM Click User Manual
