Ethernet Network Contact Closure Transmitter Receiver 8-Channel Solid State 2-Way

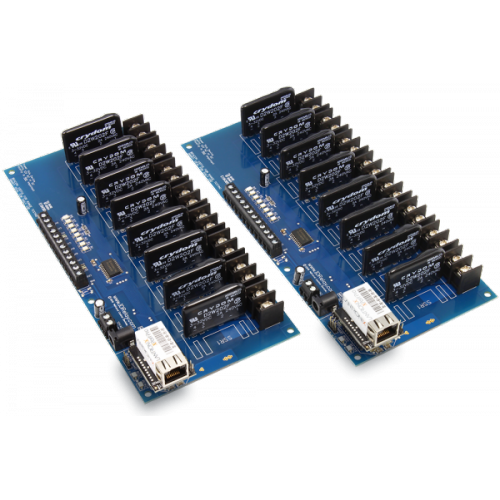

Ethernet Contact Closure 2-Way Transmitter Receiver Pair

Our MirX 8-Channel Solid-State Relay Controllers are manufactured in pairs, designed to work together when powered up using Ethernet communications over a local area network or over long distances using the internet.  The contact closure inputs on controller A control the relays on controller B.  Similarly, the contact closure inputs on controller B control the relays on controller A.  MirX controllers consist of custom firmware that keeps this married pair of controllers in constant communications with each other.  Operating over a local area network, MirX controllers are capable of finding each other directly.  Operating over the internet, MirX controllers report to our dedicated Amazon server to stay connected.  Our first prototype was tested between between Shanghai China and our office in Missouri back in 2008.  Since then, we have had years to improve our firmware and our server software to help ensure these devices stay connected whenever possible.

Customize this MirX controller for the type of solid-state relays your application requires during the order process.  Solid-state relays are of the SPST variety, and are typically used for high-reliability and long-life AC or DC switching applications.  Remotely control motors, pumps, valves, solenoids, lights, and other heavy duty electrical equipment by simply wiring a switch in one location to control your electrical equipment in a remote location.  On-board Relay status LEDs and busy/ready LEDs let you know when these controllers are talking to each other.

Ethernet Network MirX Remote Contact Closure Transmitter and Receiver Controllers

No Computers, No Configuration – Works Right Out of the Box.  MirX controllers stay connected to each other using Ethernet network communications over your local area network or through the internet.  Inputs on each controller activate the relays at the opposite controller.

Permanently Married, MirX is Always Trying to Talk to it’s Mate!

MirX controllers are always talking to each other.  They stay in relentless communications for optimal reliability.  Should they lose communication with each other, they will keep calling out for each other until they find their mate.  MirX controllers will search your local area network or the internet until they find each other.

Syncing Up

Every MirX controller is equipped with contact closure inputs and relay outputs. The inputs on one controller activate the relays on the remote device using ethernet communications. The “X” in MirX refers to the crossover. Since both devices are equipped with contact closure inputs and relays, each device targets and controls the remote device.  Every MirX controller is equipped with a Busy/Ready LED. If the Busy LED flashes, this indicates the remote device has successfully received and accepted your contact closure status. If the Busy LED does not flash, there is a communication problem between the two devices.

Applications

MirX controllers are typically used by our large industrial clients for a wide range of remote control switching applications.  Typical installations include remote gate operation, remote light control, remote pump control, as well as various temperature override applications.  Since MirX includes relays on each side, local relays are typically used for verification purposes, such as limit switches or remote door switches, indicating the remote device has completed its control function.

Variations

NCD manufactures several variations of MirX as well as other Mirror series devices.  Here are some variations you may wish to consider:

• MirX Wireless for remote control applications, available with optional wireless encryption

• MirX Wired for hard-wired communication applications
• MirX Network for local area Ethernet communications or use over the internet (internet communications uses our FREE server)

Our Mirror Family Controllers:

• MirX consists of relays and contact closure inputs on each controller.  Inputs in the home location control the relays in the remote location.  Inputs in the remote location control the relays in the home location.
• MirC is the same as MirX except MirC consists of contact closures on one controller and relays on the remote controller.
• MirM consists of a single contact closure input board and several remote relay controllers.
• MirW consists of a single several contact closure input boards and a single relay controller.

MirX Relay Options

MirX offers several relay options, depending on your application.  We stock solid-state, high-power, and general purpose relays in our MirX line of products.  However, we can customize our MirX controllers to your exact needs.  Please contact us if you need any custom designed MirX controllers, including different relay types or firmware modifications.  This particular controller has the following relay options available:

Solid State Relays

Solid state relays are ideal for agricultural switching applications, or remotely located switching.  SSRs are frequently chosen to control pumps, valves, solenoids, lights, and other high-reliability applications.  NCD solid-state relay controllers do not include solid-state relays, but you will have the option to choose the type of solid state relays you require when customizing your product. This controller is designed specifically to fit select Crydom solid-state relays, but may be compatible other solid-state relays made by other companies.

Features

• 8-Channel SPST Solid-State Relays and Inputs on Each Controller
• Sold in Pairs and Uses 12VDC per Controller
• Internet or LAN Control with No Static IP Address Required
• Each Device Controls the Other Device
  • Local Inputs Control Remote Relays
  • Remote Inputs Control Local Relays
• 2-Way Communication with Verification
• No Configuration, Computers, or Programming
• Relay and Communication LED Status Lights
