EasyPIC Fusion v7

Product Code: MIKROE-1205

EasyPIC Fusion v7
EasyPIC Fusion v7
EasyPIC Fusion v7
EasyPIC Fusion v7

₹18,799.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



EasyPIC Fusion v7

EasyPIC Fusion™ v7 combines support for three different architectures: dsPIC33, PIC24 and PIC32 in a single development board It contains many on-board modules, including multimedia, Ethernet, USB, CAN and other. On-board mikroProg™ programmer and debugger supports 101 microcontrollers via MCU cards.

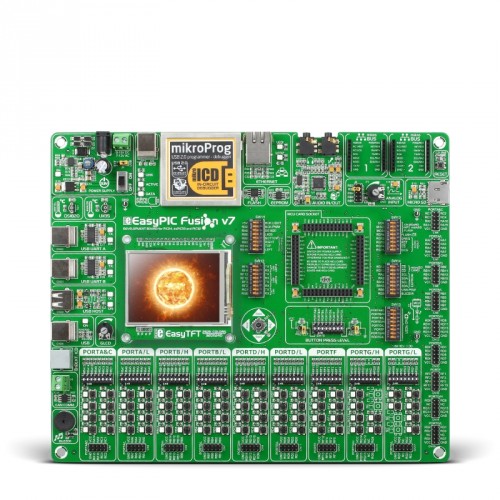

easypic fusion v7 board

mikroProg™ with debugger on Board

mikroProg™ is a fast USB 2.0 programmer with mikroICD™ hardware In-Circuit Debugger. Smart engineering allows mikroProg™ to support all dsPIC33, PIC24 and PIC32 Microchip® microcontrollers. Outstanding performance and easy operation are among it’s top features.

mikroprog for ft90x

The mikroICD™ debugger enables you to execute your program on the host microcontroller and view variable values, Special Function Registers (SFR), RAM, CODE and EEPROM memory along with the code execution on hardware. Whether you are a beginner, or a professional, this powerful tool with convenient set of commands will enable you to track down bugs quickly. mikroICD™ is one of the fastest, and most reliable debugging tools on the market.

MCU

Board contains 104-pin MCU socket for placing MCU cards which carry supported PIC32, dsPIC33 and PIC24 microcontrollers in 100-pin TQFP packaging.

Modules

Ethernet on-board

ethernet on-board

Ethernet connector (RJ-45) allows you to develop ethernet applications.

USB/UART

sub

Write UART applications for laptops too. We provided two USB-UART modules.

Touch Screen

tft

EasyTFT board with touch screen enables you to develop multimedia applications.

Buzzer

buzzer

Piezo Buzzer allows you to implement audio signalization feature in your prototype.

Storage

storage

Serial Flash and Serial EEPROM are available as additional storage.

Audio

audio

Audio in and out jacks are connected to on-board mp3 codec chip.

mikroBUS™ sockets

audio

With two mikroBUS™ sockets you can add dozens of new functionality to your board with minimum hardware adjustments. Collection of mikroBUS compatible Click Boards is growing rapidly, and we have designed them with great care, so you don’t have to make any complicated settings. Just plug your board in, and you are good to go

Package Contains

  • Damage resistant protective box

  • EasyPIC Fusion™ v7 board in antistatic bag
  • USB cable
  • User Manual and Board Schematic

Specification

Applications Developing and testing firmware, creating prototypes, learning embedded programming
Display size 2.8"
Resolution 320x240px
Graphic controller Embedded inside MCU
Touch Screen Resistive
Architecture PIC32 (32-bit),dsPIC/PIC24 (16-bit)
MCU MCU Card (Selected)
On-board modules Sockets for LM35 and DS1820 temperature sensors, ADC Potentiometers, joystick
Programming On-board mikroProg for dsPIC and PIC24 and PIC32 debugger.
Storage Serial FLASH (8 Mbits), Serial EEPROM (1024 Bytes), microSD card
Sound and Audio Piezo buzzer, VS1053 MPEG Audio codec, Audio connectors
Expandability 2 x mikroBUS sockets, 2 x IDC10 headers for each PORT
Integration Mounting holes
Input Voltage 5V (via USB) or 9-32V AC, 7-23V DC (via adapter)

Downloads

 mikroProg Suite for PIC

 Drivers for mikroProg Suite

 mikroProg Suite for PIC User Manual

 mikroProg - mikroICD User Manual

 EasyPIC Fusion v7 Examples

 EasyPIC Fusion v7 User Manual

 EasyPIC Fusion v7 Schematic
