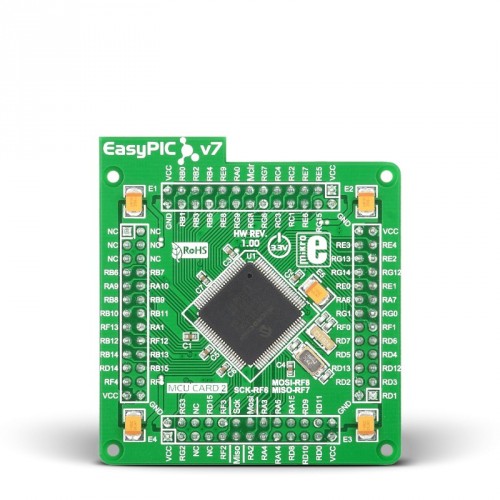

EasyPIC FUSION v7 MCUcard with dsPIC33FJ256GP710A

Description

dsPIC33FJ256GP710A has 40 MIPS CPU speed, 256K bytes of program memory (flash), 30K bytes of data memory. It has 85 General purpose I/O pins, 9 16-bit timers, 2 ADC (32 ch), 2 UARTs, internal 7.37 MHz and 512 kHz oscillators, 2 I2C, 2 SPI and 2 CAN controllers. It also contains programming and debugging interface.

8MHz crystal oscillator. We carefully chose the most convenient crystal value that provides clock frequency which can be used directly, or with the PLL multipliers to create higher MCU clock value. MCU card also contains 32.768 kHz crystal oscillator which provides external clock waveform for RTCC module.

Specification

Downloads

 EasyPIC FUSION v7 MCUcard with dsPIC33FJ256GP710A User Manual

 MCP2003B click Examples
