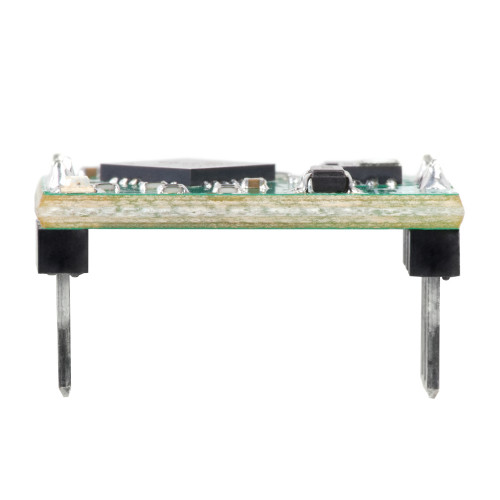

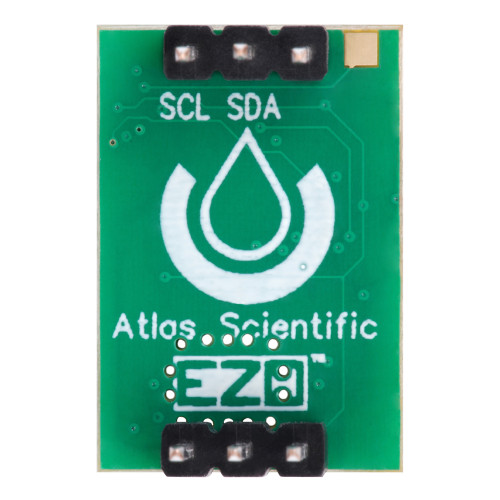

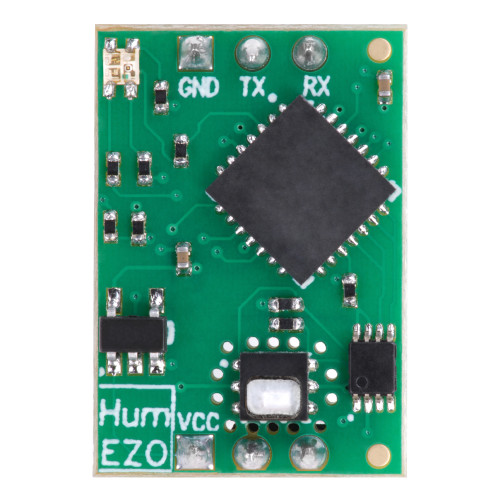

EZO™ Humidity Circuit

The EZO Humidity Circuit is designed to be embedded with your electronics, reading the humidity of your enclosure. While there is no reason it can’t read the humidity of a room, it lacks the housing needed to protect the electronics. The EZO Humidity circuit gives the same readings as our EZO-HUM Probe. There is no difference in the readings or accuracy, only the design.

Specifications:

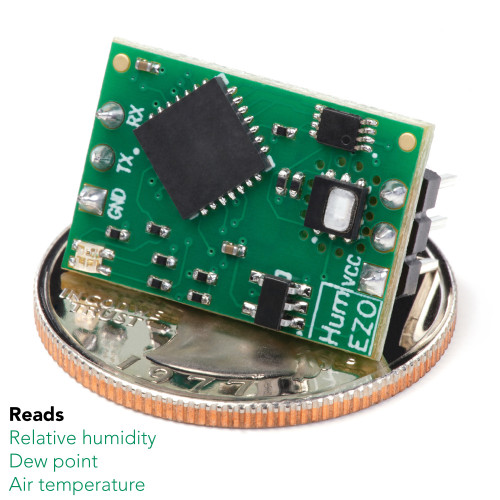

Reads - Relative humidityDew pointAir temperature

Range - 0 – 100%

Calibration - Factory calibrated

Accuracy - +/- 2%

Response time - 1 reading per second (UART mode)

1 reading per 300 milliseconds (I2C mode)

Data protocol - UART & I2C

Default I2C address - 111 (0x6F)

Data format - ASCII

Operating voltage - 3.3V − 5V

Documents:

•  EZO-HUM™ Circuit Datasheet
•  Arduino Uno Sample Code
•  Arduino Mega Sample Code
•  Arduino I2C Sample Code
•  Raspberry Pi Sample Code (I2C)
•  EZO UART Library
•  EZO I2C Library
•  RoHS Certificate
•  CE Certificate
