EVE Click

Product Code: MIKROE-1430

Brand: MikroElektronika

0 reviews | Write a review

₹4,099.00

GST inclusive

Qty:

Availability: Backorder

Add to Wish List

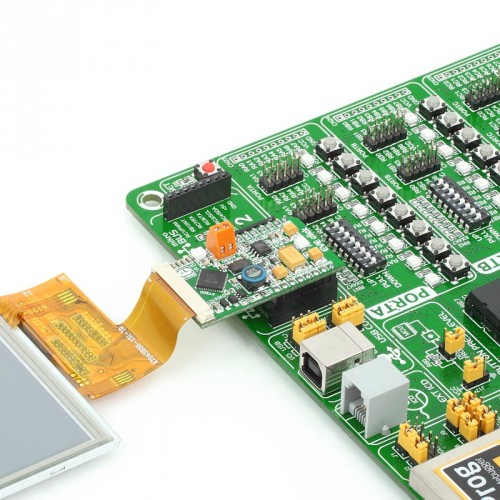

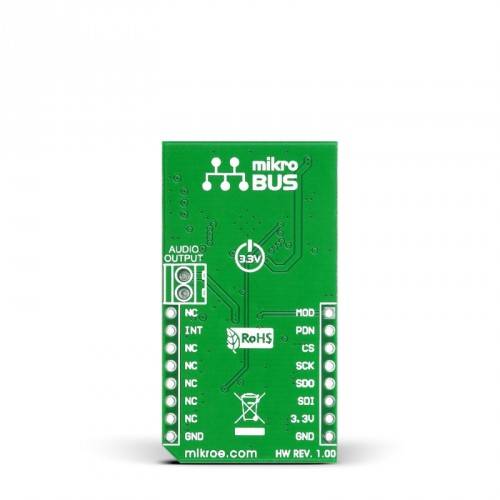

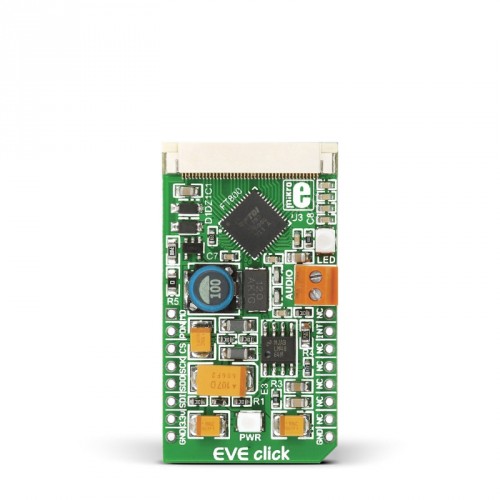

EVE Click is a display controller board in mikroBUS form factor. It features state-of-the-art FT800Q graphics controller which integrates display, audio and touch onto a low cost, easy-to-use, single-chip solution. With 12 embedded widgets, transparency and anti-aliasing support, PWM backlight dimming control and much more, FT800Q brings fast and visually stunning graphics even to 8-bit MCUs with little Flash and RAM. It communicates with a microcontroller over SPI interface (up to 30 MHz). EVE click contains flat cable connector, LM4864 audio amplifier, LED diode as well as screw terminals. The board is designed to use 3.3V power supply only.

Specification

Type	TFT
Applications	EVE click helps you to bring awesome graphics and drive large 4.3” displays even with 8-bit MCUs. It has lots of excellent features and simple interface
On-board modules	FT800Q graphics controller
Key Features	40-pin flat cable connector for 4.3” touch screen on-board. Audio amplifier with audio connector provided for mono sound output
Key Benefits	FT800Q combines display, audio and touch-screen features
Interface	GPIO,SPI
Input Voltage	3.3V
Compatibility	mikroBUS
Click board size	M (42.9 x 25.4 mm)
