ETH WIZ click

Product Code: MIKROE-1718

ETH WIZ click
ETH WIZ click
ETH WIZ click
ETH WIZ click

₹1,999.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Description

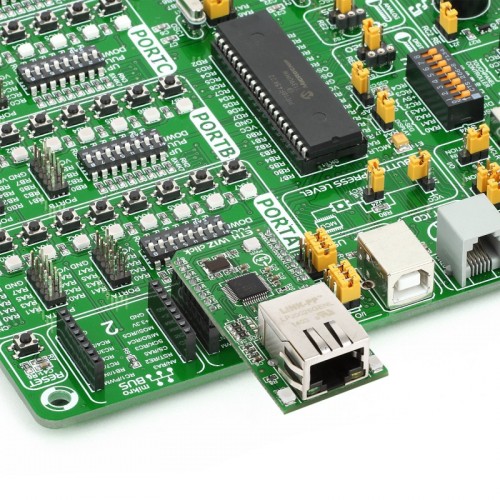

ETH Wiz click carries W5500, a 48-pin, 10/100 BASE-TX standalone ethernet controller with a hardwired TCP/IP Internet protocol offload engine, along with a standard RJ-45 connector. The W5500 module employs a variety of solutions to reduce the target MCU’s memory load and enable a stable and secure Internet connection. High speed network communications are realized through an 80 MHz SPI interface. The module has 32KB of internal memory for TX/RX buffers. Reduced power consumption is achieved with Wake on LAN and power down modes. Automatic handshaking, retransmit on collision and automatic rejection of erroneous packets are also supported.

Specification

Type Ethernet
Applications Home network devices and all sorts of Embedded servers
On-board modules W5500, a 48-pin, 10/100 BASE-TX standalone ethernet controller, standard RJ-45 connector
Key Features TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE supported. Wake on LAN and power down modes supported. 32KB of internal memory for TX/RX buffers
Key Benefits Reduces target MCU memory load
Interface GPIO,SPI
Input Voltage 3.3V
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)

Downloads

 ETH WIZ Click Example

 ETH WIZ Click User Manual
