EEPROM3 Click

Product Code: MIKROE-1989

EEPROM3 Click
EEPROM3 Click
EEPROM3 Click
EEPROM3 Click

₹1,469.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

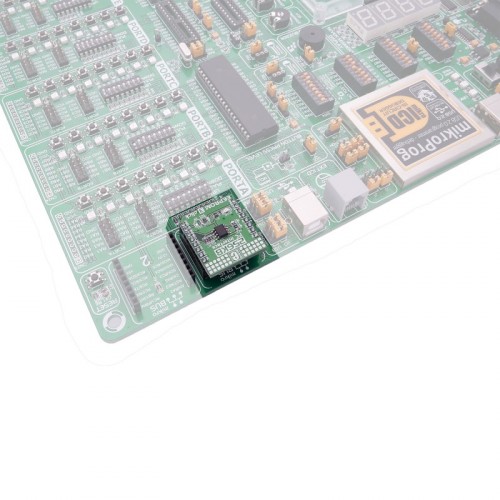

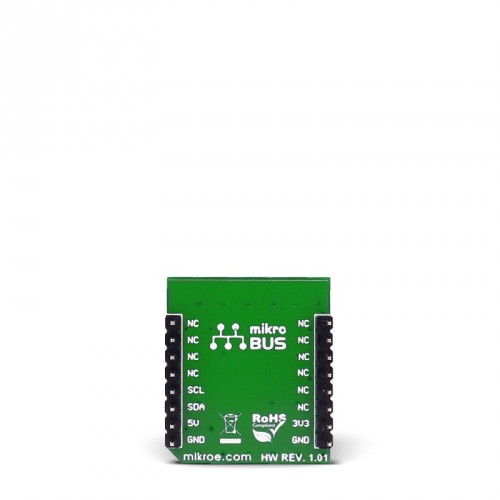

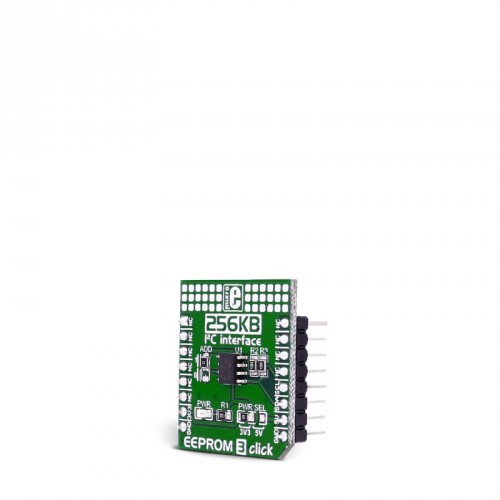

EEPROM3 click carries Atmel’s AT24CM02 8-lead SOIC EEPROM chip with 256 KB of memory. The chip has byte and page write speeds equal or less than 10 ms. It’s specified for a million write cycles, with 100 years of data retention. The memory, organized as 262144 x 8 bits. The board communicates with the target board MCU through the mikroBUS I2C interface (SCL, SDA pins) with speeds up to 1 MHz. An onboard jumper allows you to select the device address (two of them can be connected on the same I2C bus, for a total of 512 KB). The board is designed to use either a 3.3V or a 5V power supply.

Specification

Type EEPROM
Applications EEPROM3 click is an excellent choice for storing initialization and configuration data of your device, when an I2C interface is required
On-board modules Atmel’s AT24CM02 DIP-8 socket EEPROM chip
Key Features 256 KB of memory. I2C interface
Key Benefits Two devices can be connected on the same I2C bus. Million write cycles, 100 years data retention
Interface I2C
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)

Downloads

 EEPROM 3 click examples

 EEPROM 3 click user manual
