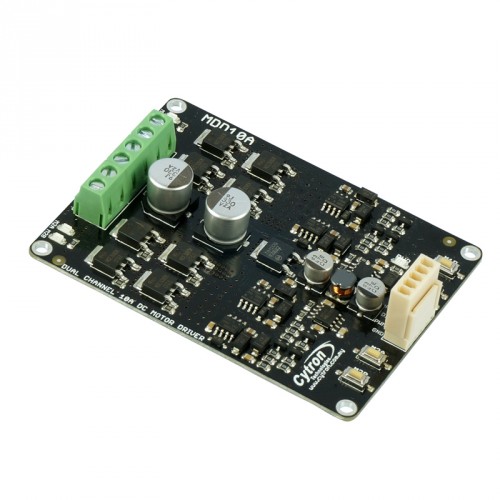

Dual Channel 10A DC Motor Driver

MDD10A is the dual channel version of MD10C which is designed to drive 2 brushed DC motor with high current up to 10A continuously. Like MD10C, MDD10A also supports locked-antiphase and sign-magnitude PWM signal. It is using full solid state components that result in faster response time and eliminate the wear and tear of the mechanical relay.

**Note that it is not for "RC PWM"

Features:

• Bi-directional control for 2 brushed DC motor.
• Support motor voltage ranges from 5V to 30V (Rev2.0).
• Maximum current up to 10A continuous and 30A peak (10 second) for each channel.
• Solid state components provide faster response time and eliminate the wear and tear of mechanical relay.
• Fully NMOS H-Bridge for better efficiency and no heat sink is required.
• Speed control PWM frequency up to 20KHz. Support both locked-antiphase and sign-magnitude PWM operation.
• 2 activation buttons for fast test on each channel.
• Dimension: 84.5mm x 62mm

Document:

• User manual

Tutorials:

• Controlling MD10C with Arduino, shows the connections to Arduino UNO.

• Using MDD10A with Arduino
• Using MDD10A with CIKU
• Smartphone Controlled Wheel Robot
