Digital Oscilloscope DIY Kit

Product Code: SFE KIT-09484

Digital Oscilloscope DIY Kit

₹5,789.00
GST inclusive



Qty:

Availability: Discontinued


Add to Wish List



This product has been discontinued

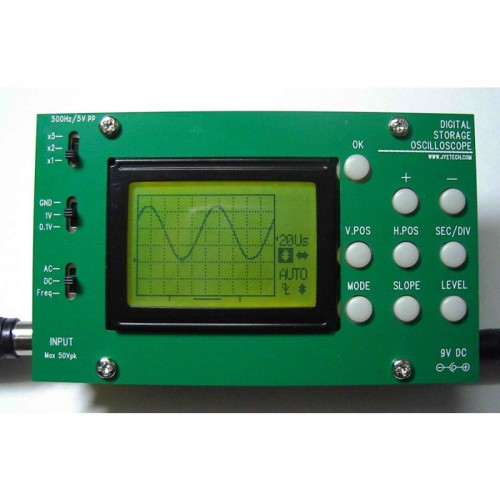

This kit includes everything you need to build your very own, fully functional, digital oscilloscope. Once you've got it up and running, the oscilloscope features up to 5M samples/second, 8-bit resolution, up to 50Vpp max input voltage, and more!

This kit includes a semi-populated PCB, with all of the surface mount components already soldered on for you. The components left for you to solder are all through-hole. This is on the higher end of difficulty as far as through-hole kits go.

This kit pairs nicely with our BNC Probe Kit! A 9V power supply is required to run the oscilloscope; supply is not included.

Note: We are now shipping a newer revision of this kit. The part number is 109-06200-00C. New pictures are forthcoming.

Features:

  • 9VDC power supply voltage
  • <280mA current draw
  • 5M samples/second (AUTO mode only)
  • 8 bit resolution
  • 256 sample memory depth
  • 1MHz analog bandwidth
  • 100mV/Div-5V/Div sensitivity
  • 1MΩ impedance
  • 50Vpeak-to-peak max input voltage
  • DC/AC coupling
  • Save and display up to 6 captures to memory
  • Transfer screen capture to PC as a bitmap file (serial adapter not included)
  • Backlit LCD display

Dimensions:

  • 110x65x25mm
  • Weight: 70g
