Wifi Bee ESP8266

INTRODUCTION

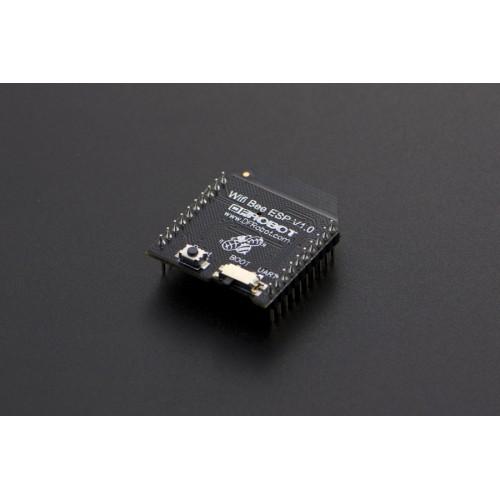

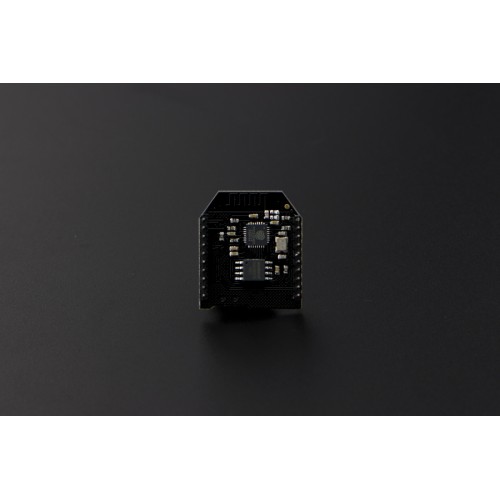

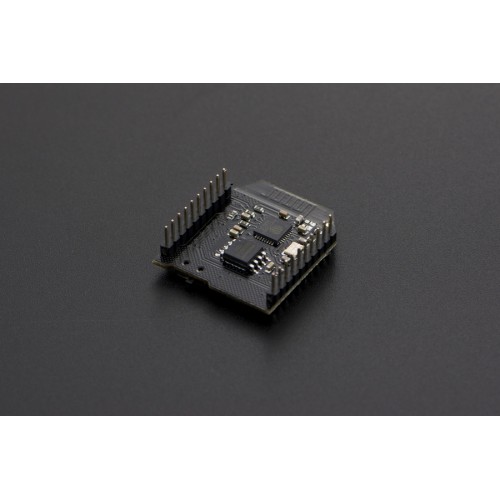

Wifi Bee-ESP8266 is a Serial-to-WIFI module using XBEE design in a compact size, compatible with XBEE slot, applicable to a variety of 3.3V single-chip system. It can be used for Arduino, wireless data transfer, remote control. On-board switch can be used to easily select the Startup module or Upgrade firmware.

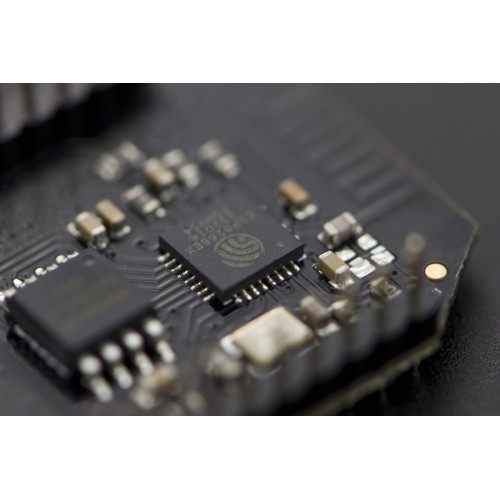

ESP8266 has a powerful on-chip processing and storage capacity, built-in 32-bit processor, built-in Lwip protocol stack. Support AP+STA mode co-exist. And you could configure various parameters via AT commands.

Note: Since the STA mode which support the Server mode is not stable, we are working on that you could refer to the ESP8266 manual book to try.


Note: In order to configure this module, you will need an adapter or Xbee shield that lets you communicate with the module, before you can plug it and use on other modules. Compatible device: Xbee USB adapter (FTDI)

Related Blogs:-

How to Make an Obstacle Avoiding Robot with MiniQ 2WD

New Product Roundup - April

BLUNO Accessory shield Demo

Smart Xmas Tree with RGB LED Strip is featured on Instructables!

How to DIY a Simple Laser Alarm System using LaunchPad

How to DIY an Indoor Carbon Dioxide Detector

The Making of Sumo Robot “Nevermore”

DIY your own air quality monitor with Arduino

SPECIFICATION

• Wi-Fi Direct (P2P),soft-AP
• Built-in TCP/IP protocol stack
• Built-in low-power 32-bit CPU: can work as an application processor
• Support WPA WPA2/WPA2-PSK encryption
• Support UART interface
• Support for TTL serial port to wireless application
• Working voltage: 3.3V power <240Ma
• Wireless standard: IEEE802.11b/g/n
• Frequency: 2.4 GHz

DOCUMENTS

• Product wiki
• ESP8266 Arduino library
• AT Commend Instruction
• ESP8266 Firmware and Tools
• Official Forum

SHIPPING LIST

• Wifi Bee-ESP8266    x1
