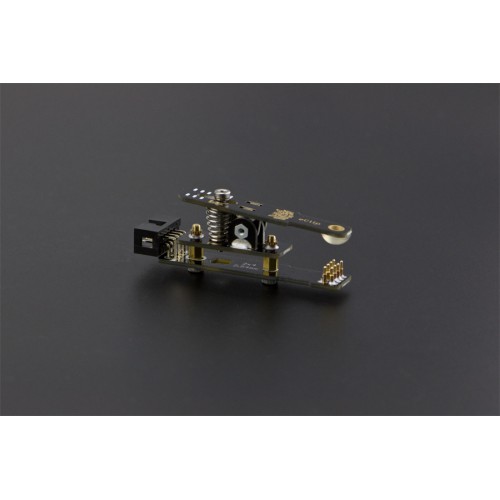

eClip - programming Fixture

INTRODUCTION

eClip is an innovative programming/testing tool specially designed for Makers. It solves the problem of prototyping wearable projects with ICSP and FTDI interfaces in limited spaces.

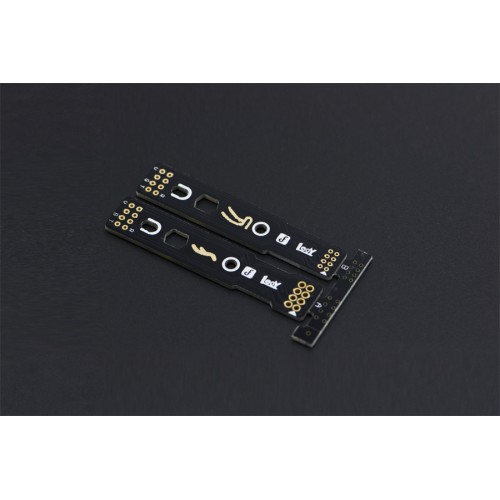

It provides 2x4 pogo-pins function-board, which makes it much easier to design and use ICSP/FTDI based on Arduino/AVR. What’s more, this tool supports extension so you can design your own dedicated function-board to meet your specific requirements.

The eClip comes in DIY kit, you can enjoy soldering and assembling. Designer: Leo Yan.

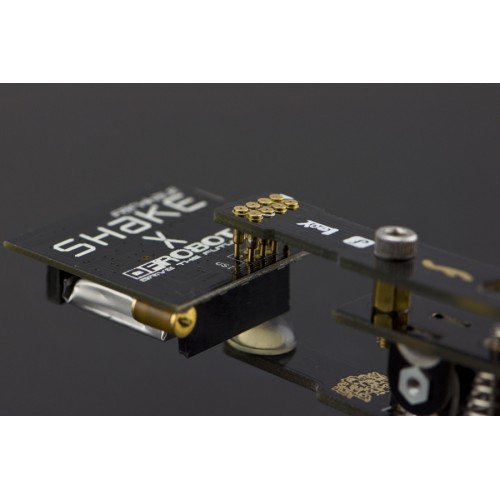

Compatible with Beetle, Bluno Beetle, uHex, "Shake" 8*8 LED Matrix


SPECIFICATION

• Dimensions: 72 * 29 * 18 (L*W*H)mm
• Weight: 32g

DOCUMENTS

• Product Handbook
• Function Board Design Template (eagle file)
• Function Board Design Template (dxf file)

SHIPPING LIST

• eClip Programming  fixture   x1
