USB Camera for Raspberry Pi and NVIDIA

Introduction

This product is a driver-free camera with 30W pixels and 640*480 resolution. The camera is well compatible with both Raspberry Pi and NVIDIA series mainboards. Just plug it in, and you’re good to go!

The compact size of 30*25*21.4mm makes the module possible to be embedded in a variety of devices, which can be used for applications like face identification, image recognition, security and protection, and remote teaching.

Specification

• Photosensitive Element: CMOS
• AGC/AEC/AWB: auto
• Infrared Filter: 650±10nm
• Supports MJPG and YUV format
• FPN: < 0.03% of VPEAK-TO-PEAK
• Connector: USB 2.0
• Pixel: 30W
• Resolution: 640*480
• Operating Voltage: 5V
• Operating Temperature: -20℃-70℃
• FCC & CE Certification

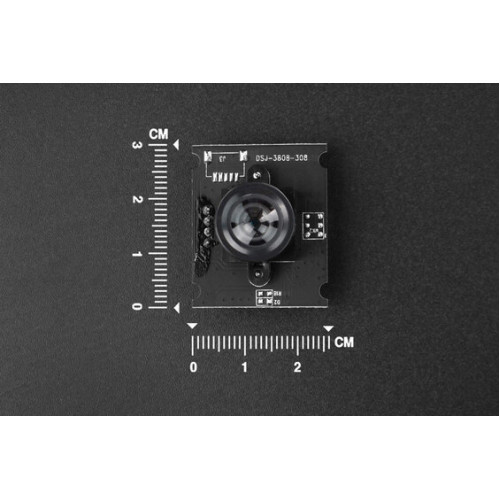

• Dimension: 30*25*21.4mm/1.18*0.98*0.84”
• Supports Windows, iOS, Android, Linux

Shipping List

• USB Camera for Raspberry Pi and NVIDIA x1
