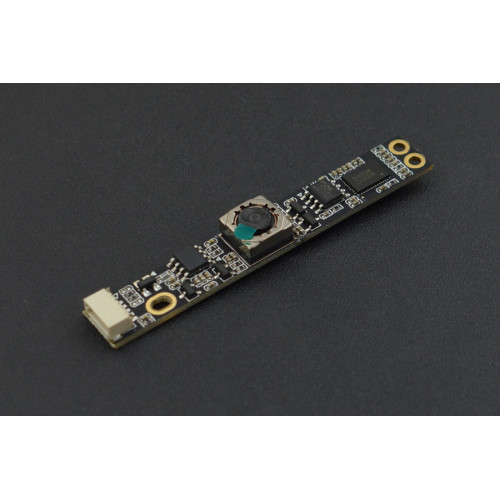

LattePanda 5MP UVC Camera

Introduction

LattePanda 5MP USB camera is a high quality 5 megapixel image sensor with compatibility of different system.
UVC (USB video device class) made the camera has no need for any driver on windows, Linux or Android. USB 2.0 port , support OTG, auto-focus, automatic low light correction，all these is for plug and play.
With its small size, you can use it in your face/object recognition project, or even as a regular webcam.

Note：It's a normal phenomenon when it heat up after long time use, please be careful!

Feature

• 5 megapixel
• Support OTG

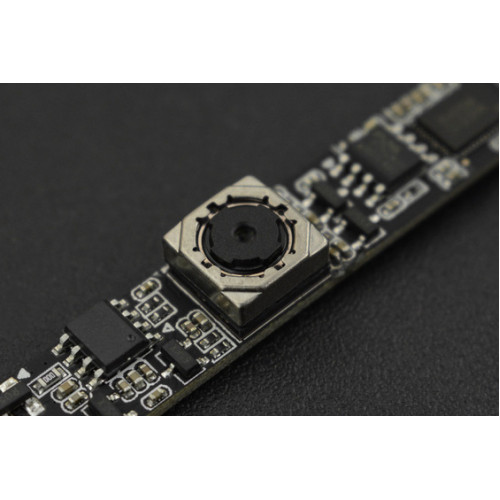

• Auto-focus
• Automatic low light correction
• UVC

Specification

• Sensor：OV5640
• 2592 x 1944 pixel static images
• FOV：72°
• Support Formats: MJPEG & YUV
• Operation Temperature：-30~70℃
• Power Supply：5V
• Operation current：140mA
• Interface：USB2.0

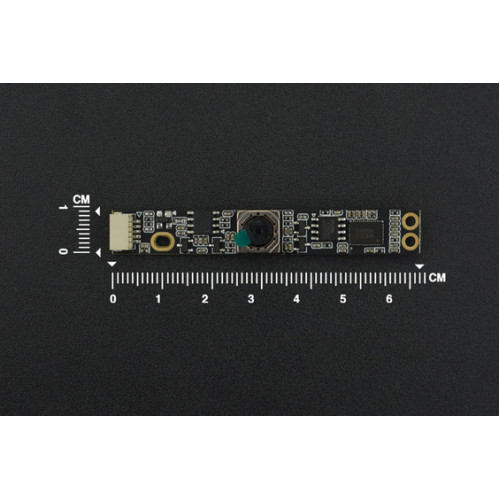

• Module size: 9MM *62MM

Documents

• LattePanda official website
• UVC Windows implementation guide
• UVC Linux guide
• UVC Android guide

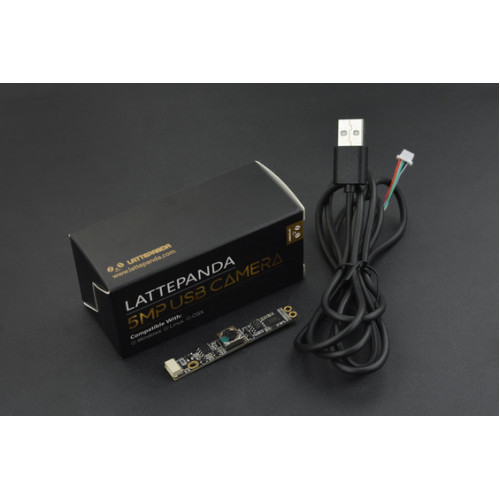

Shipping List

• LattePanda 5MP UVC Camera x1
• 1m USB2.0 cable x1
