DFPlayer - A Mini MP3 Player For Arduino

INTRODUCTION

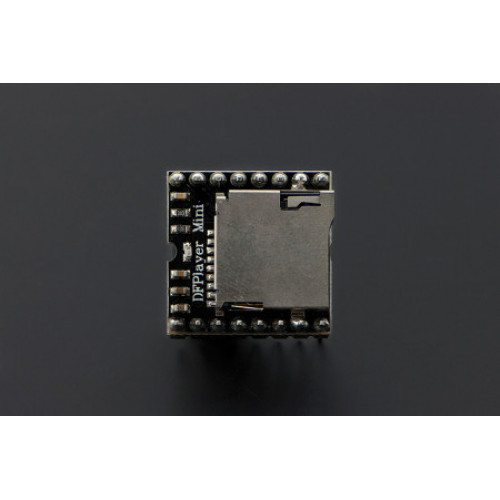

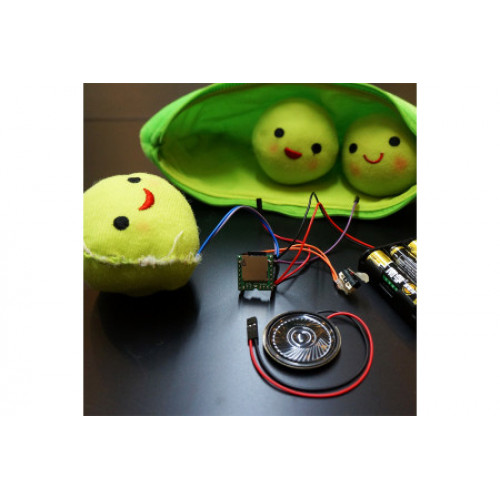

Sing for the moment! The DFPlayer Mini is a small and low cost MP3 module player with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.

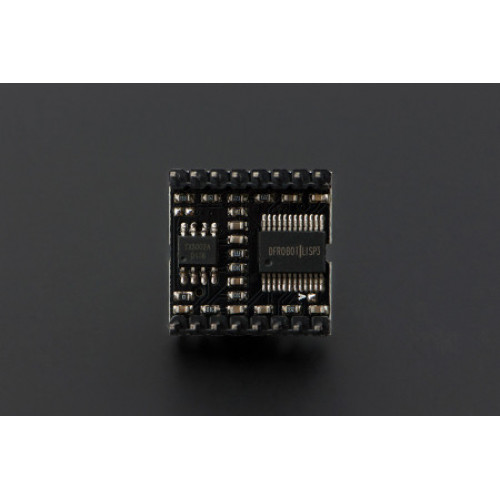

The DFPlayer perfectly integrates hard decoding module, which supports common audio formats such as MP3, WAV and WMA. Besides, it also supports TF card with FAT16, FAT32 file system. Through a simple serial port, you can play the designated music without any other tedious underlying operations.

APPLICATIONS

• Car navigation voice broadcast;
• Road transport inspectors, toll stations voice prompts;
• Railway station, bus safety inspection voice prompts;
• Electricity, communications, financial business hall voice prompts;
• Vehicle into and out of the channel verify that the voice prompts;
• The public security border control channel voice prompts;
• Multi-channel voice alarm or equipment operating guide voice;
• The electric tourist car safe driving voice notices;
• Electromechanical equipment failure alarm;
• Fire alarm voice prompts;
• The automatic broadcast equipment, regular broadcast.

SPECIFICATION

• Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
• 24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
• Fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH
• A variety of control modes, I/O control mode, serial mode, AD button control mode
• Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
• Audio data sorted by folder, supports up to 100 folders, every folder can hold up to 255 songs
• 30 level adjustable volume, 6 -level EQ adjustable

DOCUMENTS

• Wiki (DFPlayer: a mini MP3 Player for Arduino)
• User Manual
• SVG File

SHIPPING LIST

• DFPlayer Mini x1
