Conveyor Belt

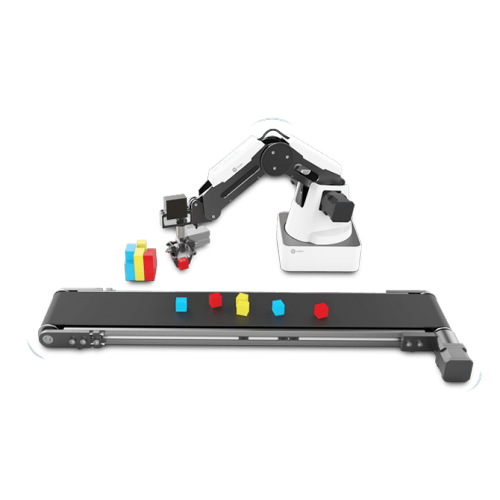

The Conveyor Kit for the Dobot Magician allows you have a complete production line simulation. The Conveyor belt has adjustable speed, a distance and colour sensor combined with the powerful and programmable Dobot Magician makes for a complete professional system.  These are the ideal essentials for you to create a highly effective simulated production line, or even to apply to actual factory scenes.

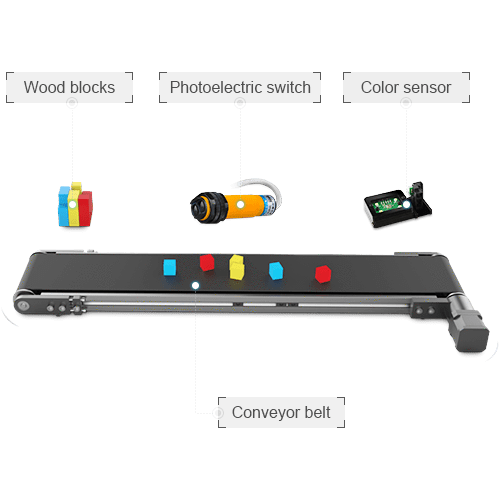

• Mini conveyor belt is a great kit for building an automation process with you robot.
• Detect whether there are objects in front of the photoelectric switch.
• An easy-to-use colour sensor for you to categorise red, blue and green objects.
• These colourful wooden cubes are easy to grab, move and pile, the ideal material for you to get a grip of automation process.

 Conveyor Belt:

• Payload: 500G
• Effective Delivering Distance: 600mm
• Max Speed: 120 mm/s
• Max Acceleration: 1100 mm/s
• Weight: 4.2KG
• Dimensions: 700 x 215 x 60mm

Distance Measuring Unit:

• Measurable Range: 20 ~ 150mm
• Signal: Analogue Output
• Input: 4.5-5.5V

Colour Recognising Sensor Unit:

• Input:
• Detectable: Non-glowing object
