Waspmote CAN Bus + DB9 cable

Product Code: CH-WA-CAN

Waspmote CAN Bus + DB9 cable
Brand: Cooking Hacks

Call Us
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



CAN is a multi-master broadcast serial bus standard for connecting electronic control units (ECUs). Each node is able to send and receive messages, but not simultaneously. A message consists primarily of an ID (identifier), which represents the priority of the message. A CAN message that is transmitted with highest priority will succeed and the node transmitting the lower priority message will sense this and back off and wait.

The information is transmitted by two twisted wires that connect all system modules. It is transmitted by voltage difference between the two levels. The high voltage value represents 1 and low 0. Its combination forms an appropriate message.

You will need batteries to use Waspmote as an autonomous device.

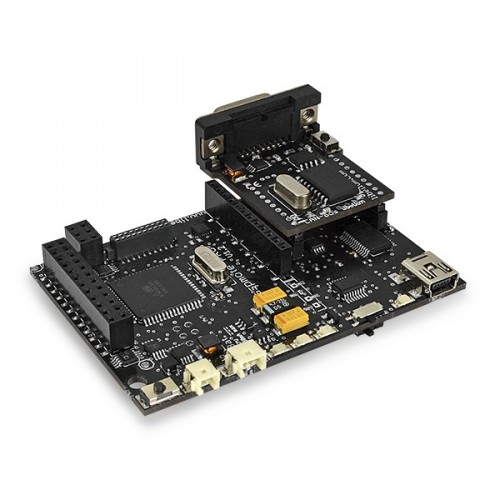

This pack includes:
- Waspmote board
- CAN Bus Module
- DB9 Cable
- miniUSB cable

You can also get the OBD-II cable separately.

CAN Bus
Standard ISO 11898
Cabling Twisted pair
Connector DB9
Network Topology Multimaster
Speed 125 to 1000 Kbps
Signaling Differential
Voltage Levels 0-5V
Signals Half Duplex

Documentation:
Waspmote Quick Tutorial
Waspmote Site
Waspmote Technical Guides
Sensor Boards Technical Guides
Networking Guides
Developers Forum
Videos
Articles
50 Applications with Waspmote
FAQ: Waspmote Vs. Arduino
