Clicker 2 for MSP432

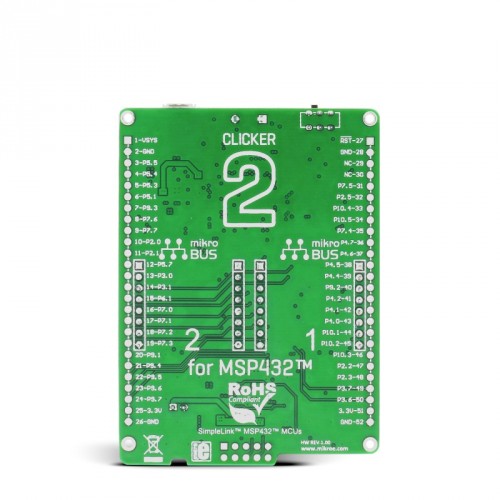

Clicker 2 for MSP432 is a compact development board with two mikroBUS™ sockets for click board connectivity. It carries the SimpleLink™ MSP432™ - ARM® 32-Bit Cortex®-M4F CPU with integrated 1Msps 14-bit SAR-based ADC from Texas Instruments.

Everything you need to get started

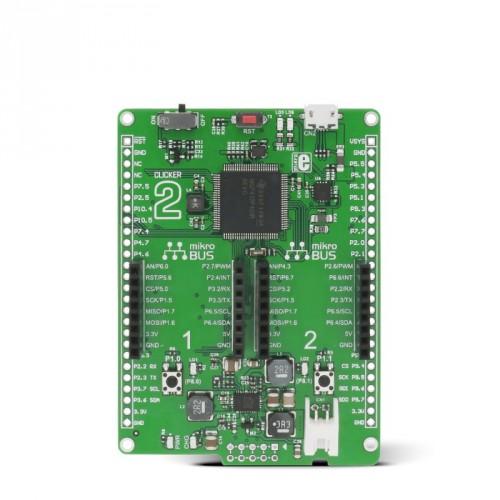

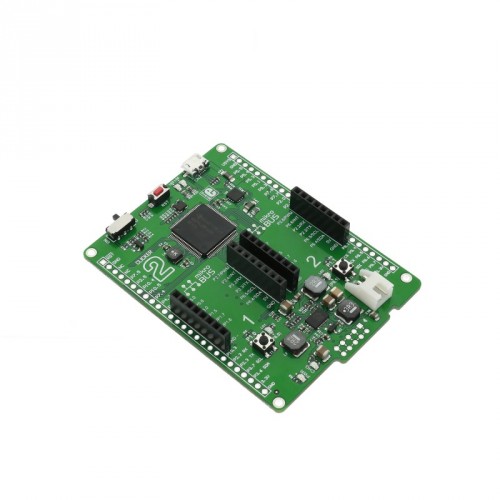

The board features everything you need to get started: a 32-bit SimpleLink™ MSP432™ microcontroller, micro USB connector, two mikroBUS™ sockets, two LEDs and push buttons, reset button and headers for interfacing with external electronics.

MSP432™ microcontroller

The SimpleLink™ MSP432™ microcontroller is ultra-low-power microcontrollers with high performance processing capabilities and high-precision analog integration optimized for as host MCU for wireless connectivity, sensing and measurement.

The SimpleLink™ MSP432™ MCUs feature the ARM Cortex-M4 processor in a wide configuration of device options including a rich set of high-precision analog, timing, and communication peripherals, thereby catering to a large number of application scenarios where both efficient data processing and enhanced low-power operation are paramount.

The MCU has 256KB of Flash Main Memory (Organized Into Two Banks Enabling Simultaneous Read/Execute During Erase). 16KB of Flash Information Memory (Used for BSL, TLV, and Flash Mailbox). Up to 64KB of SRAM (Including 6KB of Backup Memory). 32KB of ROM With MSP432™ Peripheral Driver Libraries.

Hundreds of possibilities with click boards™

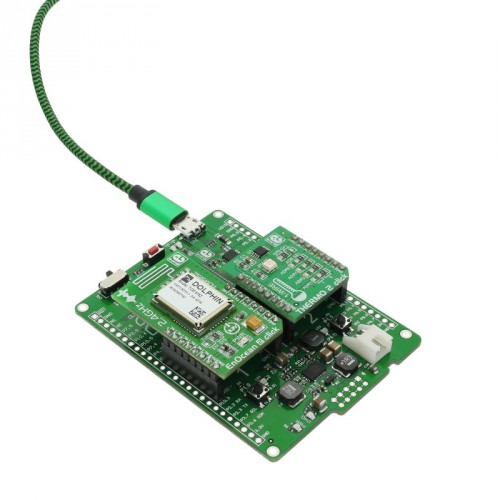

Take advantage of the constantly expanding range of over 270 click boards™ - the onboard mikroBUS™ sockets allows you to add new functionality to your project. Each click board™ comes with a set of working example code.

Just think about it, 270 click boards give you more than 36000 combinations to choose from.

Choose two clicks that suit your project the most, and you’re half-way done. Have fun and play, mix and match.

Programming

To make your prototyping experience as convenient as possible, clicker 2 for MSP432 is preprogrammed with a UART bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. On-board mikroProg for MSP432 connector enables programming through external programmer/debugger.

Power Management

clicker 2 for MSP432 features LTC®3586, a highly integrated power management and battery charger IC that includes a current limited switching PowerPath manager. LTC®3586 also enables battery charging over a USB connection.

You can supply power to the board with a micro USB cable provided in the package. On-board voltage regulators provide the appropriate voltage levels to each component on the board.

Downloads

 MSP432 datasheet

 mikroProg suite for ARM v150

 clicker 2 MSP432 bootloader

 MSP432 schematic
