CEC1702 clicker is a compact development board with a mikroBUS™ socket for click board connectivity and Microchip’s CEC1702 - a 32-bit ARM® Cortex™ -M4 Processor Core, with strong cryptographic support.

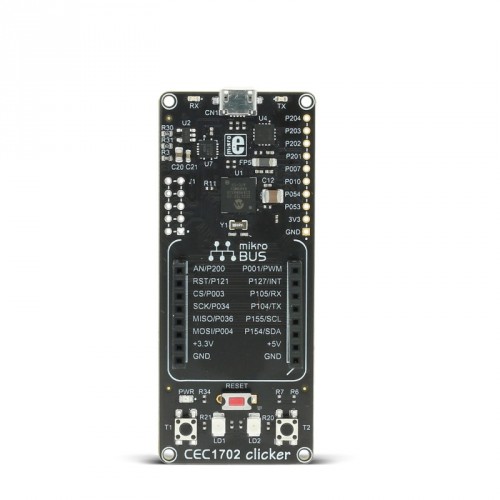

The board features everything you need to get started: a 32-bit CEC1702 microcontroller, USB-UART connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.
The CEC1702 provides a high level of security features, it's a microcontroller with a complete hardware cryptography-enabled solution. It delivers a multi-dimensional defense against attacks, including:

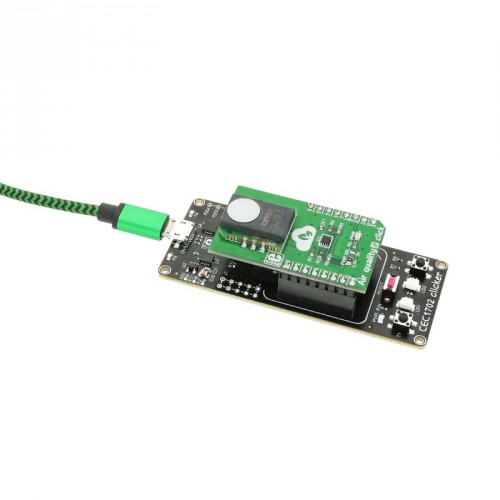

Take advantage of the constantly expanding range of over 270 click boards™ - the onboard mikroBUS™ socket allows you to add new functionality to your project. Each click board™ comes with a set of working example code.
CEC1702 clicker is shipped without the Bootloader and the appropriate eFUSE settings (factory default). To be able to program the CEC1702 clicker, follow the steps explained on CEC1702 Specifics in the Help section of the ARM compilers, under "OTP Programming the CEC1702 device".
You can download the Bootloader from the link below.
Applications | This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas |
Architecture | ARM (32-bit) |
MCU | CEC1702 |
MCU Memory | 480KB of SRAM |
On-board modules | 2 x LEDs, 2 x push buttons, 1 x reset button |
Expandability | A mikroBUS socket, two 1x26 mikromedia-compatible headers |
