CEC1302 Clicker

Product Code: MIKROE-1970

CEC1302 Clicker
CEC1302 Clicker
CEC1302 Clicker
CEC1302 Clicker

₹2,629.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Description

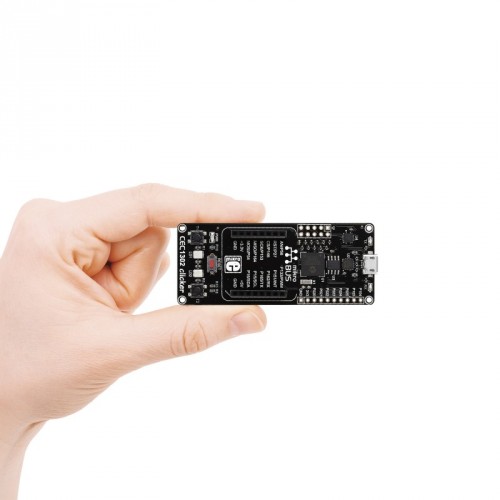

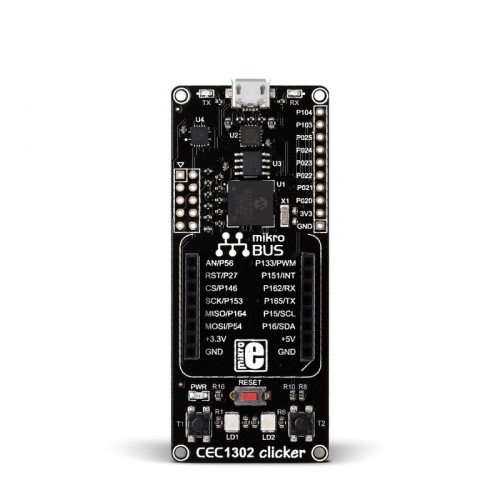

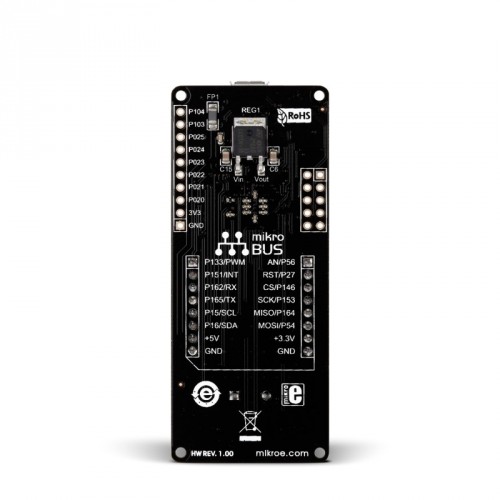

CEC1302 clicker is an amazingly compact starter development kit which brings click board™ connectivity to the 32-bit ARM® Cortex™-M4 CEC1302 microcontroller with an integrated cryptographic engine. Board features all you need to get started: 32-bit CEC1302 microcontroller, USB-UART connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.

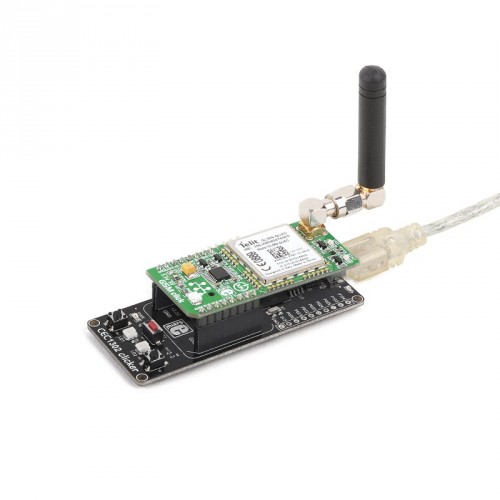

Hundreds of possibilities with click boards. With mikroBUS™ socket, you can take advantage of the huge potential of click™ boards, the constantly expanding range of over 200 add-on boards.

Programming. To make your prototyping experience as convenient as possible, CEC1302 clicker is preprogrammed with a UART bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. On-board mikroProg for CEC connector enables programming through external programmer/debugger.

Specification

Applications This compact board brings flexibility of click boards to a microcontroller with an integrated cryptographic engine, making it a perfect starter kit for trying out its features
Architecture ARM (32-bit)
MCU CEC1302
MCU speed 48MHz
MCU Memory 128kB SRAM, 32kB boot ROM
On-board modules 1 x USB MINI-B connector, 2 x LEDs, 2 x push buttons, 1 x reset button
Programming Preprogrammed with UART bootloader. Also features mikroProg for CEC connector
Input Voltage 5V (via USB)

Downloads

 CEC1302 clicker UART Bootloader

 CEC1302 clicker Schematic
