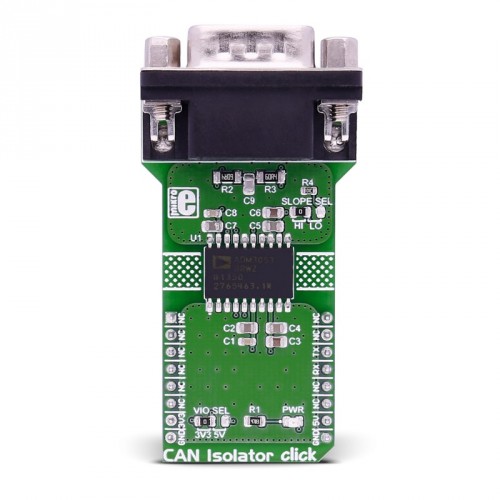

CAN Isolator click

Product Code: MIKROE-2627

CAN Isolator click
CAN Isolator click
CAN Isolator click
CAN Isolator click

₹4,099.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



CAN Isolator click provides isolated CAN communication. It carries the ADM3053 signal and power isolated CAN transceiver with an integrated isolated DC-to-DC converter. The click is designed to run on either 3.3V or 5V power supply. CAN Isolator click communicates with the target microcontroller over UART interface.

The click carries a DB 9-pin male connector.

ADM3053 features

The ADM3053 is an isolated controller area network (CAN) physical layer transceiver with an integrated isolated DC-to-DC converter.

The ADM3053 creates a fully isolated interface between the CAN protocol controller and the physical layer bus. It is capable of running at data rates of up to 1 Mbps.

Connector features

This is a standard DB 9-pin male connector.

Specifications

Type CAN,Isolator
Applications CAN data buses, Industrial field networks
On-board modules ADM3053 CAN transceiver, DB 9-pin connector
Key Benefits No need for an external supply for the isolated side
Interface UART
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)

Pinout diagram

This table shows how the pinout on CAN Isolator click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes Pin Mikrobus logo.png Pin Notes
  NC 1 AN PWM 16 NC
  NC 2 RST INT 15 NC
  NC 3 CS TX 14 RXD Receiver Output Data
  NC 4 SCK RX 13 TXD Driver Input Data
  NC 5 MISO SCL 12 NC
  NC 6 MOSI SDA 11 NC
Power supply +3.3V 7 3.3V 5V 10 +5V Power supply
Ground GND 8 GND GND 9 GND Ground

Jumpers and settings

Designator Name Default Position Default Option Description
JP1 VIO.SEL. Left 3V3 Power Supply Voltage Selection 3V3/5V, left position 3V3, right position 5V
JP2 SLOPE SEL Left HI Slope select, default high rate, right option the slope is limited

Programming

Code snippet

Example of CAN confgiration - PIC32

01 // set required baud rate and sampling rules
02 unsigned int can_config_flags;
03 CAN1SetOperationMode(_CAN_MODE_CONFIG,0xFF);
04 can_config_flags = _CAN_CONFIG_SAMPLE_THRICE &
05                    _CAN_CONFIG_PHSEG2_PRG_ON &
06                    _CAN_CONFIG_STD_MSG &
07                    _CAN_CONFIG_MATCH_MSG_TYPE &
08                    _CAN_CONFIG_LINE_FILTER_OFF;
09 CAN1SetBaudRate(1,3,3,3,1,can_config_flags);
10 CAN1ConfigureFIFO(_CAN_BUFFER_0, 8,_CAN_FIFO_RX & _CAN_FULL_MESSAGE);
11 CAN1ConfigureFIFO(_CAN_BUFFER_1, 8,_CAN_FIFO_TX & _CAN_TX_PRIORITY_3 & _CAN_TX_NO_RTR_FRAME);
12 CAN1SetMask(_CAN_MASK_0, -1, _CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_XTD_MSG);
13 CAN1SetFilter(_CAN_FILTER_31, ID_1st, _CAN_MASK_3, _CAN_BUFFER_0, _CAN_CONFIG_XTD_MSG);
14 CAN1FilterEnable(0x1111);

Downloads

 mikroBUS™ Standard specification

 Learn article: CAN Bus

 ADM3053 datasheet

 CAN Isolator click schematic
