Button R click
Product Code: MIKROE-1901

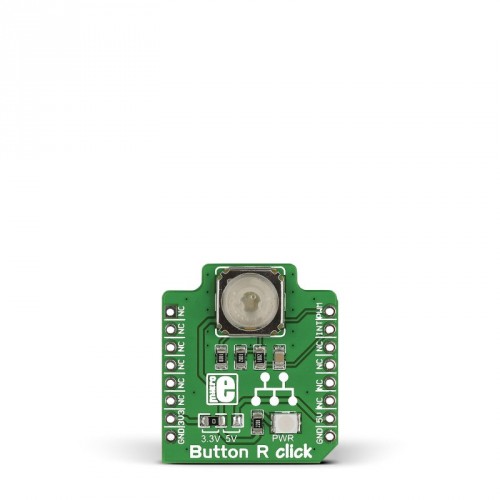

Button R click is the simplest solution for adding a single pushbutton to your design. The button itself is transparent, 6.8mm in diameter and has a red LED backlight. When pressed, it sends an interrupt signal to the target board microcontroller. The backlight LED is controlled separately through the mikroBUS PWM pin, so you can program all kinds of patterns (varying level of light intensity or rate of blinking on subsequent button presses). The board can use either a 3.3V or a 5V power supply.
Specification
| Type | Joystick |
| Applications | When your user-interface design requires the tactile feel and feedback of a hardware pushbutton |
| On-board modules | transparent button, 6.8mm in diameter and has a red LED backlight |
| Key Features | Uses mikroBUS INT (for pushbutton) and PWM (for LED) pins |
| Key Benefits | Independently controlled LED (PWM), compatible with Button library in mikroC, mikroBasic and mikroPascal |
| Interface | PWM,GPIO |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
