Breakout Board for VS1053 MP3/SD Module

This product has been discontinued

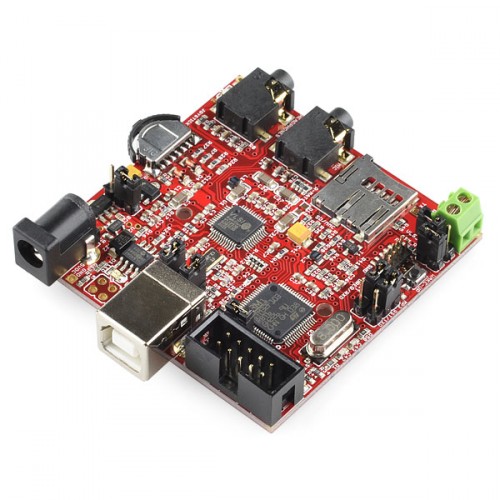

The MOD-MP3-X is a ready to use VS1053 MP3 decoder board. It includes an SD socket, voltage regulation, and audio jacks. Add your choice of controllers and you've got a configurable MP3 player!

Features:

• Based on VS1053 hardware decoder for MPEG 1 & 2 audio layer 3 (ISO 11172-3), MP3+V, WAV and PCM files ; supports ADPCM encoding and decoding
  supports VBR (variable bitrate) for MP3; Supports streaming
• Single 1.5V battery cell operation with on board low power DC/DC voltage boost converter
• On board STM32F103RBT6 microcontroller
• USB mass storage device
• UEXT to connect to host microcontroller (standard connector on our ARM development boards)
• Can work as stand-alone MP3 player operation
• SD/MMC socket on board
• Stereo Audio microphone jack, Stereo Audio headphones jack
• Can be used to record and playback
• Triple action lever switch: Forward, Reverse, Play/Pause action
• PCB: FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print
• Dimensions: 60x60 mm (2.36x2.36")

Documents:

• User Manual
• Schematic
• Product Page
• Demo Code (LPC-P2148)
